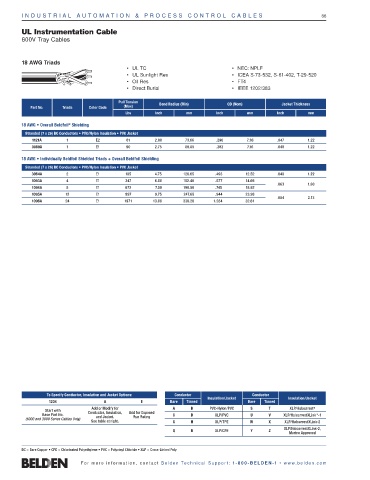

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 86

UL Instrumentation Cable
600V Tray Cables

18 AWG Triads
• UL TC • NEC: NPLF
• UL Sunlight Res • ICEA S-73-532, S-61-402, T-29-520
• Oil Res • FT4
• Direct Burial • IEEE 1202/383

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Triads Color Code (Max)
Lbs Inch mm Inch mm Inch mm
®
18 AWG • Overall Beldfoil Shielding
Stranded (7 x 26) BC Conductors • PVC/Nylon Insulation • PVC Jacket
1121A 1 E2 81 2.90 73.66 .290 7.36 .047 1.22
3089A 1 E1 90 2.75 89.85 .282 7.16 .048 1.22
18 AWG • Individually Beldfoil Shielded Triads + Overall Beldfoil Shielding
Stranded (7 x 26) BC Conductors • PVC/Nylon Insulation • PVC Jacket
3064A 2 E1 185 4.75 120.65 .493 12.52 .048 1.22
1093A 4 E1 347 6.00 152.40 .577 14.66
.063 1.60
1094A 8 E1 672 7.50 190.50 .745 18.92
1095A 12 E1 997 9.75 247.65 .944 23.98
.084 2.13
1096A 24 E1 1971 13.00 330.20 1.284 32.61

To Specify Conductor, Insulation and Jacket Options: Conductor Conductor
Insulation/Jacket Insulation/Jacket
1234 A E Bare Tinned Bare Tinned
Add or Modify for A B PVC-Nylon/PVC S T XLP/Haloarrest ®
Start with Conductor, Insulation, Add for Exposed
Base Part No. and Jacket. Run Rating C D XLP/PVC U V XLP/HaloarrestXLink ™ -1
(1000 and 3000 Series Cables Only)
See table at right. G H XLP/TPE W X XLP/HaloarrestXLink-2
XLP/HaloarrestXLink-2,
Q R XLP/CPE Y Z
Marine Approved
BC = Bare Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
