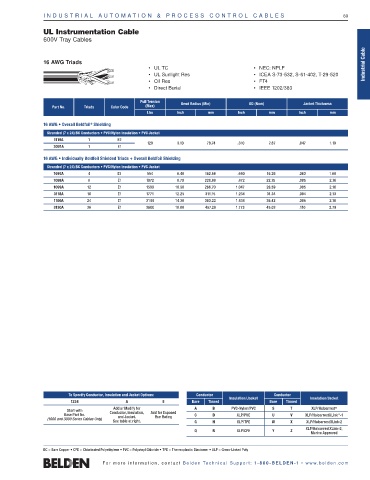

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 89

UL Instrumentation Cable
600V Tray Cables
Industrial Cable
16 AWG Triads
• UL TC • NEC: NPLF
• UL Sunlight Res • ICEA S-73-532, S-61-402, T-29-520
• Oil Res • FT4
• Direct Burial • IEEE 1202/383

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Triads Color Code (Max)
Lbs Inch mm Inch mm Inch mm
16 AWG • Overall Beldfoil Shielding
®
Stranded (7 x 24) BC Conductors • PVC/Nylon Insulation • PVC Jacket
1119A 1 E2
129 3.10 78.74 .310 7.87 .047 1.19
3091A 1 E1
16 AWG • Individually Beldfoil Shielded Triads + Overall Beldfoil Shielding
Stranded (7 x 24) BC Conductors • PVC/Nylon Insulation • PVC Jacket
1097A 4 E1 554 6.40 162.56 .640 16.26 .063 1.60
1098A 8 E1 1072 8.70 220.98 .872 22.15 .085 2.16
1099A 12 E1 1590 10.50 266.70 1.047 26.59 .085 2.16
3118A 16 E1 1771 12.25 311.15 1.234 31.34 .084 2.13
1100A 24 E1 3144 14.30 363.22 1.434 36.42 .085 2.16
3130A 36 E1 3600 18.00 457.20 1.773 45.03 .110 2.79

To Specify Conductor, Insulation and Jacket Options: Conductor Conductor
Insulation/Jacket Insulation/Jacket
1234 A E Bare Tinned Bare Tinned
Add or Modify for A B PVC-Nylon/PVC S T XLP/Haloarrest ®
Start with Conductor, Insulation, Add for Exposed
Base Part No. and Jacket. Run Rating C D XLP/PVC U V XLP/HaloarrestXLink ™ -1
(1000 and 3000 Series Cables Only)
See table at right. G H XLP/TPE W X XLP/HaloarrestXLink-2
XLP/HaloarrestXLink-2,
Q R XLP/CPE Y Z
Marine Approved
BC = Bare Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride • TPE = Thermoplastic Elastomer • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
