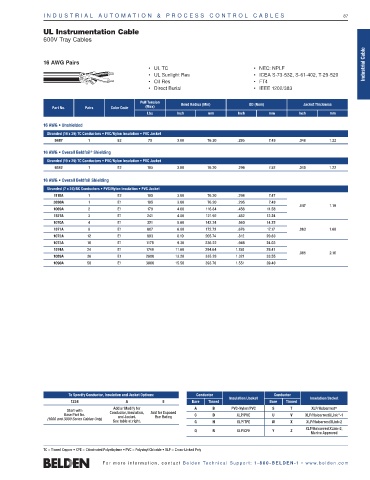

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 87

UL Instrumentation Cable
600V Tray Cables
Industrial Cable
16 AWG Pairs
• UL TC • NEC: NPLF
• UL Sunlight Res • ICEA S-73-532, S-61-402, T-29-520
• Oil Res • FT4
• Direct Burial • IEEE 1202/383

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Pairs Color Code (Max)
Lbs Inch mm Inch mm Inch mm

16 AWG • Unshielded
Stranded (19 x 29) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9487 1 E2 70 3.00 76.20 .295 7.49 .048 1.22
16 AWG • Overall Beldfoil Shielding
®
Stranded (19 x 29) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9342 1 E2 105 3.00 76.20 .296 7.52 .048 1.22

16 AWG • Overall Beldfoil Shielding
Stranded (7 x 24) BC Conductors • PVC/Nylon Insulation • PVC Jacket
1118A 1 E2 105 3.00 76.20 .294 7.47
3090A 1 E1 105 3.00 76.20 .295 7.49
.047 1.19
1069A 2 E1 179 4.60 116.84 .456 11.58
1527A 3 E1 241 4.80 121.92 .482 12.24
1070A 4 E1 321 5.60 142.24 .560 14.22
1071A 8 E1 607 6.80 172.72 .676 17.17 .063 1.60
1072A 12 E1 893 8.10 205.74 .812 20.63
1073A 16 E1 1178 9.30 236.22 .946 24.03
1074A 24 E1 1749 11.60 294.64 1.158 29.41
.085 2.16
1089A 36 E1 2606 13.20 335.28 1.321 33.55
1090A 50 E1 3606 15.50 393.70 1.551 39.40

To Specify Conductor, Insulation and Jacket Options: Conductor Conductor
Insulation/Jacket Insulation/Jacket
1234 A E Bare Tinned Bare Tinned
Add or Modify for A B PVC-Nylon/PVC S T XLP/Haloarrest ®
Start with Conductor, Insulation, Add for Exposed
Base Part No. and Jacket. Run Rating C D XLP/PVC U V XLP/HaloarrestXLink ™ -1
(1000 and 3000 Series Cables Only)
See table at right. G H XLP/TPE W X XLP/HaloarrestXLink-2
XLP/HaloarrestXLink-2,
Q R XLP/CPE Y Z
Marine Approved
TC = Tinned Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
