P. 109

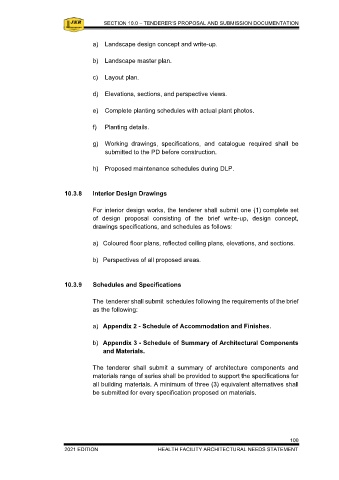

SECTION 10.0 – TENDERER’S PROPOSAL AND SUBMISSION DOCUMENTATION SECTION 10.0 – TENDERER’S PROPOSAL AND SUBMISSION DOCUMENTATION
a) Landscape design concept and write-up.
B. SUCCESSFUL TENDERER
b) Landscape master plan.
c) Layout plan. 10.4 DESIGN REPORT
d) Elevations, sections, and perspective views. 10.4.1 a) The successful tenderer shall submit a design report that consists of but
not limited to the following:
e) Complete planting schedules with actual plant photos.
i. Planning, design concepts, and principles of the proposal.
f) Planting details.
ii. Design descriptions of the proposal.
g) Working drawings, specifications, and catalogue required shall be
submitted to the PD before construction. iii. Schematic drawings and sketches showing design intent.
h) Proposed maintenance schedules during DLP. iv. Diagrams and activity workflow (zoning, circulation, etc.).
v. Proposed design work programme.
10.3.8 Interior Design Drawings
vi. IBS score calculation.
For interior design works, the tenderer shall submit one (1) complete set
of design proposal consisting of the brief write-up, design concept, vii. Preliminary Design Stage Assessment Report using pHJKR or other
drawings specifications, and schedules as follows: Green Rating Tools as required by the PD/Client.
a) Coloured floor plans, reflected ceiling plans, elevations, and sections. viii. Accessibility Check List compliant to MS 1184:2014 Universal Design
and Accessibility in Built Environment – Code of Practice, MS
b) Perspectives of all proposed areas. 1331:2003 Code of Practice for Access of Disabled Persons Outside
Buildings (First Revision) and undertaking letter of compliance from
the tenderer's consultant architect.
10.3.9 Schedules and Specifications
b) Upon confirmation of any changes to the architectural design, the
The tenderer shall submit schedules following the requirements of the brief successful tenderer shall submit a building model in a metric scale of a
as the following: size approved by the Government. The model shall be the property of
the Government.
a) Appendix 2 - Schedule of Accommodation and Finishes.
c) The successful tenderer shall submit Manual Quality for the quality
b) Appendix 3 - Schedule of Summary of Architectural Components assurance system of architectural works to the PD for his approval
and Materials. before the works commence.
The tenderer shall submit a summary of architecture components and d) The successful tenderer shall comply with all Non-Conformance
materials range of series shall be provided to support the specifications for Report (NCR) prior to the Government's approval.
all building materials. A minimum of three (3) equivalent alternatives shall
be submitted for every specification proposed on materials. e) Upon confirmation of final interaction, all drawings and minutes of Room
Data Interaction (RDI) meetings shall be in binding and submitted to the
Government.
100 101
2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT 2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT
