SECTION 10.0 – TENDERER’S PROPOSAL AND SUBMISSION DOCUMENTATION SECTION 10.0 – TENDERER’S PROPOSAL AND SUBMISSION DOCUMENTATION

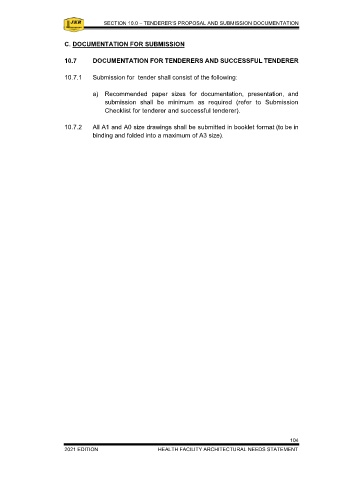

C. DOCUMENTATION FOR SUBMISSION
10.8 CHECKLIST FOR TENDERERS
10.7 DOCUMENTATION FOR TENDERERS AND SUCCESSFUL TENDERER
MIN. PAPER COMPLIANCE
10.7.1 Submission for tender shall consist of the following: SUBMISSION CONTENT SIZE / SCALE (√ )
Planning, design concepts and principles of the
a) Recommended paper sizes for documentation, presentation, and proposal.
submission shall be minimum as required (refer to Submission Design descriptions of the proposal.
Checklist for tenderer and successful tenderer). Schematic drawings and sketches showing design
intent.
10.7.2 All A1 and A0 size drawings shall be submitted in booklet format (to be in A. DESIGN REPORT Diagrams and activity workflow (zoning, circulation, A3
binding and folded into a maximum of A3 size). etc.).
Proposed design work programme.
IBS score calculation.
Proposal of Master Key System.
Proposal of Internal and External Signages.

Key and Location Plan of the project site. A1
A1/A0
Master Plan of the entire site development. A1/A0
1:500
B. ARCHITECTURAL DRAWINGS Floor Plans. A1/A0
Detailed site layout of buildings.
1:500

Elevations.
1:100
Sections.
A3
Detail drawings (readable with standard scale).
All relevant interior design and perspectives of all
A3
buildings.
A2
Exterior perspectives of all buildings – 3 nos.
Landscape drawings.
All other pertinent support drawings for evaluation
A3
purposes.
Notes: A1
The tenderer shall provide readable scaled drawings of the building as a whole.

Appendix 2: Accommodation and Finishes. A3
C. SCHEDULES Material – minimum three (3) alternatives brands.
Appendix 3: Architectural Components and

Notes:
A minimum of three (3) alternatives shall be proposed for materials, furniture, and

equipment.

104 105
