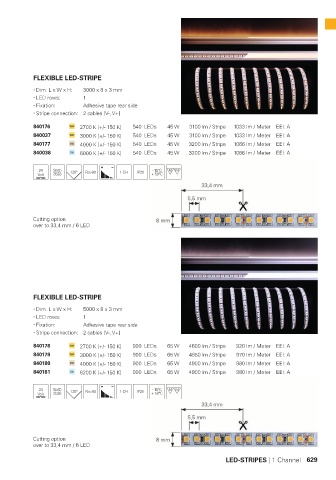

Page 630 - Deko-Light Light Impressions 2019-20
P. 630
FLEXIBLE LED-STRIPE
Dim. L x W x H: 3000 x 8 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840176 2700 K [+/- 150 K] 540 LEDs 45 W 3100 lm / Stripe 1033 lm / Meter EEI: A
840037 3000 K [+/- 150 K] 540 LEDs 45 W 3100 lm / Stripe 1033 lm / Meter EEI: A
840177 4000 K [+/- 150 K] 540 LEDs 45 W 3200 lm / Stripe 1066 lm / Meter EEI: A
840038 6000 K [+/- 150 K] 540 LEDs 45 W 3200 lm / Stripe 1066 lm / Meter EEI: A
24 SMD 120° Ra>90 1 CH IP20 - 15°C M M
3528 + 50°C
Cutting option
over to 33,4 mm / 6 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 8 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
840178 2700 K [+/- 150 K] 900 LEDs 65 W 4600 lm / Stripe 920 lm / Meter EEI: A
840179 3000 K [+/- 150 K] 900 LEDs 65 W 4850 lm / Stripe 970 lm / Meter EEI: A
840180 4000 K [+/- 150 K] 900 LEDs 65 W 4900 lm / Stripe 980 lm / Meter EEI: A
840181 6200 K [+/- 150 K] 900 LEDs 65 W 4900 lm / Stripe 980 lm / Meter EEI: A
24 SMD 120° Ra>90 1 CH IP20 - 15°C M M
3528 + 50°C
Cutting option
over to 33,4 mm / 6 LED
LED-STRIPES | 1 Channel 629
