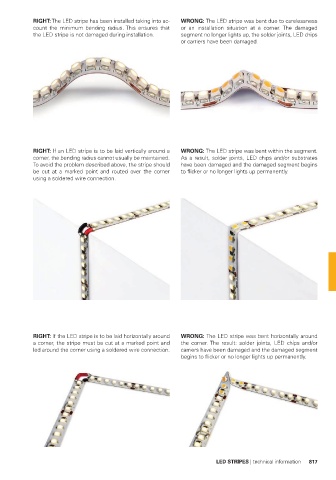

RIGHT: The LED stripe has been installed taking into ac- WRONG: The LED stripe was bent due to carelessness
count the minimum bending radius. This ensures that or an installation situation at a corner. The damaged
the LED stripe is not damaged during installation. segment no longer lights up, the solder joints, LED chips
or carriers have been damaged.
RIGHT: If an LED stripe is to be laid vertically around a WRONG: The LED stripe was bent within the segment.
corner, the bending radius cannot usually be maintained. As a result, solder joints, LED chips and/or substrates
To avoid the problem described above, the stripe should have been damaged and the damaged segment begins
be cut at a marked point and routed over the corner to flicker or no longer lights up permanently.
using a soldered wire connection.
RIGHT: If the LED stripe is to be laid horizontally around WRONG: The LED stripe was bent horizontally around
a corner, the stripe must be cut at a marked point and the corner. The result: solder joints, LED chips and/or
led around the corner using a soldered wire connection. carriers have been damaged and the damaged segment
begins to flicker or no longer lights up permanently.
