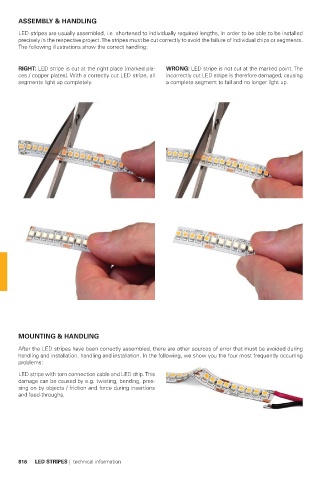

ASSEMBLY & HANDLING

LED stripes are usually assembled, i.e. shortened to individually required lengths, in order to be able to be installed
precisely in the respective project. The stripes must be cut correctly to avoid the failure of individual chips or segments.
The following illustrations show the correct handling:

RIGHT: LED stripe is cut at the right place [marked pla- WRONG: LED stripe is not cut at the marked point. The
ces / copper plates]. With a correctly cut LED stripe, all incorrectly cut LED stripe is therefore damaged, causing
segments light up completely. a complete segment to fail and no longer light up.

MOUNTING & HANDLING
After the LED stripes have been correctly assembled, there are other sources of error that must be avoided during
handling and installation. handling and installation. In the following, we show you the four most frequently occurring
problems:
LED stripe with torn connection cable and LED chip. This
damage can be caused by e.g. twisting, bending, pres-
sing on by objects / friction and force during insertions
and feed-throughs.
