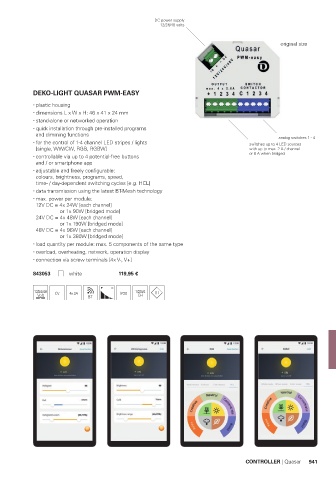

P. 943
DC power supply
12/24/48 volts
original size
DEKO-LIGHT QUASAR PWM-EASY
plastic housing
dimensions L x W x H: 46 x 41 x 24 mm
stand-alone or networked operation
quick installation through pre-installed programs
and dimming functions
analog switches 1 - 4
for the control of 1-4 channel LED stripes / lights switches up to 4 LED sources
[single, WW/CW, RGB, RGBW] with up to max. 2 A / channel
controllable via up to 4 potential-free buttons or 8 A when bridged
and / or smartphone app
adjustable and freely configurable:
colours, brightness, programs, speed,
time- / day-dependent switching cycles [e.g. HCL]
data transmission using the latest BT-Mesh technology
max. power per module:
12V DC = 4x 24W [each channel]
or 1x 90W [bridged mode]
24V DC = 4x 48W [each channel]
or 1x 190W [bridged mode]
48V DC = 4x 96W [each channel]
or 1x 380W [bridged mode]
load quantity per module: max. 5 components of the same type
overload, overheating, network, operation display
connection via screw terminals [4x V-, V+]
843053 white 119,95 €
12/24/48 CV 4x 2A IP20 1/2/3/4
CH
CONTROLLER | Quasar 941
