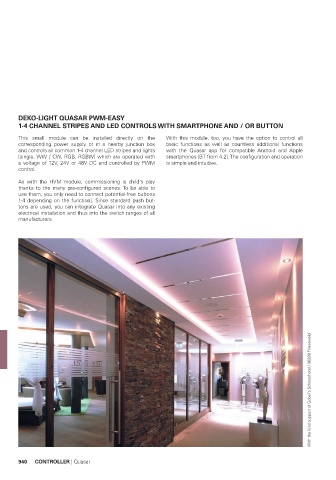

DEKO-LIGHT QUASAR PWM-EASY
1-4 CHANNEL STRIPES AND LED CONTROLS WITH SMARTPHONE AND / OR BUTTON

This small module can be installed directly on the With this module, too, you have the option to control all
corresponding power supply or in a nearby junction box basic functions as well as countless additional functions
and controls all common 1-4 channel LED stripes and lights with the Quasar app for compatible Android and Apple
[single, WW / CW, RGB, RGBW] which are operated with smartphones [BT from 4.2]. The configuration and operation
a voltage of 12V, 24V or 48V DC and controlled by PWM is simple and intuitive.
control.
As with the HVM module, commissioning is child's play
thanks to the many pre-configured scenes. To be able to
use them, you only need to connect potential-free buttons
1-4 depending on the function]. Since standard push but-
tons are used, you can integrate Quasar into any existing
electrical installation and thus into the switch ranges of all
manufacturers.

With the kind support of Göbel‘s Schlosshotel / 36289 Friedewald
