THE MODERN WORLD

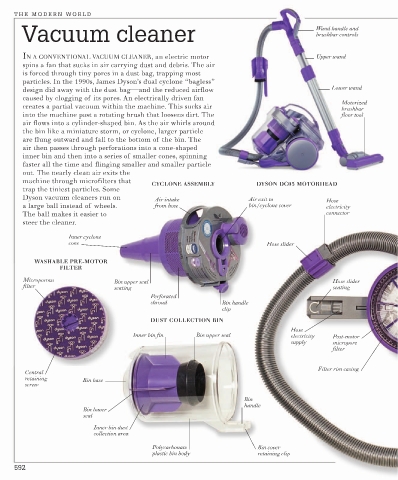

Vacuum cleaner Wand handle and
brushbar controls

IN A CONVENTIONAL VACUUM CLEANER, an electric motor Upper wand
spins a fan that sucks in air carrying dust and debris. The air
is forced through tiny pores in a dust bag, trapping most
particles. In the 1990s, James Dyson’s dual cyclone “bagless”
design did away with the dust bag—and the reduced airflow Lower wand
caused by clogging of its pores. An electrically driven fan
Motorized
creates a partial vacuum within the machine. This sucks air brushbar
into the machine past a rotating brush that loosens dirt. The floor tool
air flows into a cylinder-shaped bin. As the air whirls around
the bin like a miniature storm, or cyclone, larger particle
are flung outward and fall to the bottom of the bin. The
air then passes through perforations into a cone-shaped
inner bin and then into a series of smaller cones, spinning
faster all the time and flinging smaller and smaller particle
out. The nearly clean air exits the
machine through microfilters that
CYCLONE ASSEMBLY DYSON DC05 MOTORHEAD
trap the tiniest particles. Some
Dyson vacuum cleaners run on Air intake Air exit to Hose
a large ball instead of wheels. from hose bin/cyclone cover electricity
The ball makes it easier to connector
steer the cleaner.

Inner cyclone
cone Hose slider

WASHABLE PRE-MOTOR
FILTER
Microporous Bin upper seal Hose slider
filter
seating seating
Perforated
shroud Bin handle
clip
DUST COLLECTION BIN
Hose
Inner bin fin Bin upper seal electricity Post-motor
supply micropore
filter

Filter rim casing
Central
retaining Bin base
screw
Bin
handle
Bin lower
seal
Inner bin dust
collection area
Polycarbonate Bin cover
plastic bin body retaining clip
