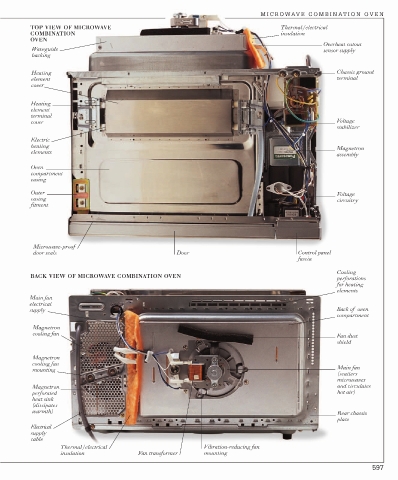

MICROWAVE COMBINATION OVEN
TOP VIEW OF MICROWAVE Thermal/electrical
COMBINATION insulation
OVEN
Overheat cutout
Waveguide sensor supply
backing
Heating Chassis ground
element terminal
cover
Heating
element
terminal
cover Voltage
stabilizer
Electric
heating Magnetron
elements
assembly
Oven
compartment
casing
Outer Voltage
casing circuitry
fitment
Microwave-proof
door seals Door Control panel
fascia
Cooling
BACK VIEW OF MICROWAVE COMBINATION OVEN perforations
for heating
elements
Main fan
electrical
supply Back of oven
compartment
Magnetron
cooling fan
Fan dust
shield
Magnetron
cooling fan
mounting Main fan
(scatters
microwaves
Magnetron and circulates
perforated hot air)
heat sink
(dissipates
warmth) Rear chassis
plate
Electrical
supply
cable
Thermal/electrical Vibration-reducing fan
insulation Fan transformer mounting
