IRON AND WASHER-DR YER

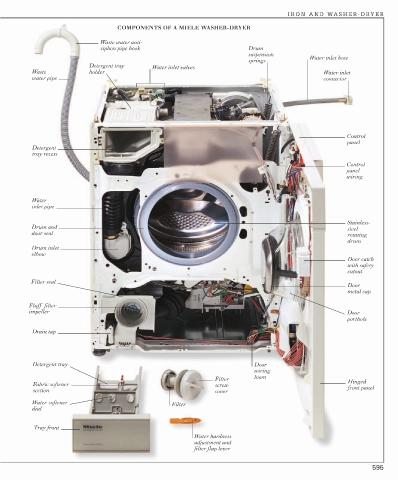

COMPONENTS OF A MIELE WASHER-DRYER
Waste water anti-
siphon pipe hook Drum
suspension
springs Water inlet hose
Detergent tray Water inlet valves
Waste holder Water inlet
water pipe connector
Control
panel
Detergent
tray recess
Control
panel
wiring
Water
inlet pipe
Stainless-
Drum and
steel
door seal rotating
drum
Drum inlet
elbow
Door catch
with safety
cutout
Filter seal
Door
metal cap
Fluff filter
impeller Door
porthole
Drain tap
Detergent tray Door
wiring
loom
Filter
Fabric softener screw Hinged
front panel
section cover
Water-softener Filter
dial
Tray front
Water hardness
adjustment and
filter flap lever
