VACUUM CLEANER

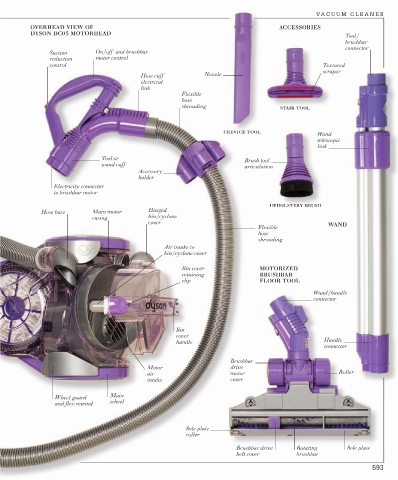

OVERHEAD VIEW OF ACCESSORIES
DYSON DC05 MOTORHEAD
Tool/
brushbar
connector
Suction On/off and brushbar
reduction motor control
control Textured
scraper
Hose cuff Nozzle
electrical
link
Flexible
hose
shrouding STAIR TOOL

CREVICE TOOL
Wand
telescopic
link
Tool or Brush tool
wand cuff articulation
Accessory
holder
Electricity connector
to brushbar motor
UPHOLSTERY BRUSH
Hose base Main motor Hinged
casing bin/cyclone
cover WAND
Flexible
hose
shrouding
Air intake to
bin/cyclone cover
Bin cover MOTORIZED
retaining BRUSHBAR
clip FLOOR TOOL
Wand/handle
connector

Bin
cover
Handle
handle
connector
Brushbar
Motor drive
air motor Roller
intake cover
Main
Wheel guard
and flex rewind wheel

Sole plate
roller
Brushbar drive Rotating Sole plate
belt cover brushbar
