Chapter 7 Central heating systems

Fire valve
Stop valve Flue
Control box
Oil pump Heating
Oil tank Stop valve flow

Water
jacket
Heating
return

Filter Blast tube Boiler lining

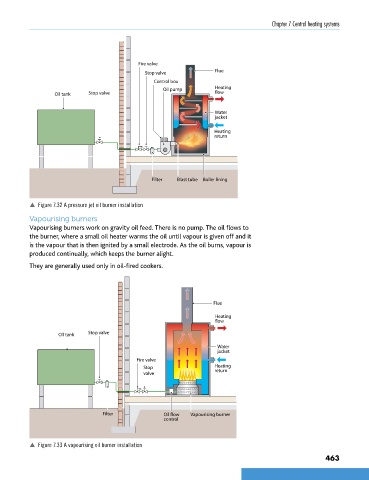

p Figure 7.32 A pressure jet oil burner installation

Vapourising burners
Vapourising burners work on gravity oil feed. There is no pump. The oil flows to
the burner, where a small oil heater warms the oil until vapour is given off and it
is the vapour that is then ignited by a small electrode. As the oil burns, vapour is
produced continually, which keeps the burner alight.
They are generally used only in oil-fired cookers.

Flue

Heating
flow
Oil tank Stop valve

Water
jacket
Fire valve
Stop Heating
return
valve

Filter Oil flow Vapourising burner
control

p Figure 7.33 A vapourising oil burner installation

463
