3000
2500
2000 G2/B3/G2
[G/B]3G
Force (N) 1500 S1
S4
E-glass/basalt (S1)
1000 E-glass/basalt (S4)
500
0
0 2 4 6 8 10 12 14 16 18
Time (ms)

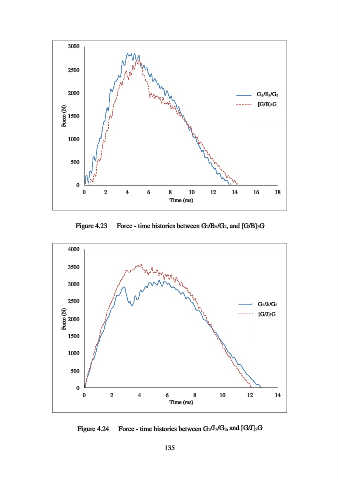

Figure 4.23 Force - time histories between G2/B3/G2, and [G/B]3G
4000
3500
3000
2500
G2/J3/G2
Force (N) 2000 [G/J]3G
1500
1000
500
0
0 2 4 6 8 10 12 14
Time (ms)
Figure 4.24 Force - time histories between G2/J3/G2, and [G/J]3G
