450
850/s 1300/s 2350/s
400
350
300
Stress (MPa) 250
200
150
100
50
0
0 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18
Strain

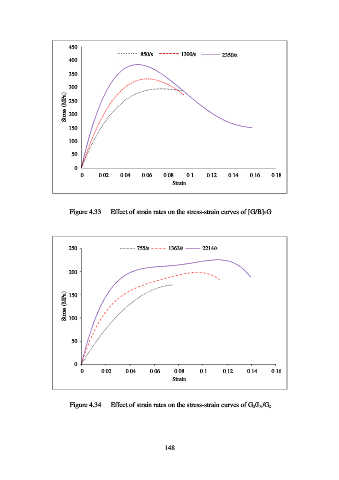

Figure 4.33 Effect of strain rates on the stress-strain curves of [G/B]3G
250 755/s 1363/s 2214/s
200
Stress (MPa) 150
100
50
0
0 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16
Strain
Figure 4.34 Effect of strain rates on the stress-strain curves of G2/J3/G2
