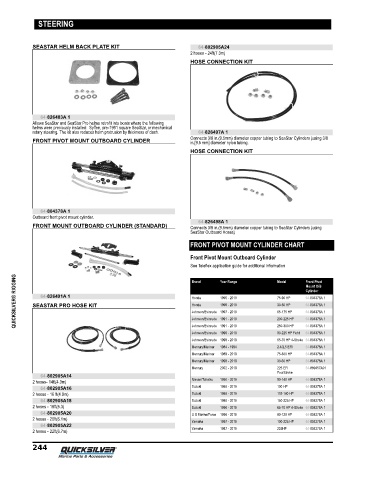

Page 253 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

SEASTAR HELM BACK PLATE KIT 64-802905A24
2 hoses ‑ 24ft(7.3m)
HOSE CONNECTION KIT

64-826483A 1
Allows SeaStar and SeaStar Pro helms retrofit into boats where the following
helms were previously installed: SyTen, pre‑1991 square SeaStar, or mechanical
rotary steering. The kit also reduces helm protrusion by thickness of dash. 64-826497A 1
FRONT PIVOT MOUNT OUTBOARD CYLINDER Connects 3/8 in.(9.5mm) diameter copper tubing to SeaStar Cylinders (using 3/8
in.[9.5 mm] diameter nylon tubing.
HOSE CONNECTION KIT

64-804378A 1
Outboard front pivot mount cylinder.
64-826498A 1
FRONT MOUNT OUTBOARD CYLINDER (STANDARD) Connects 3/8 in.(9.5mm) diameter copper tubing to SeaStar Cylinders (using
SeaStar Outboard Hoses)

FRONT PIVOT MOUNT CYLINDER CHART
Front Pivot Mount Outboard Cylinder
See Teleflex application guide for additional Information Front Pivot
QUICKSILVER® RIGGING SEASTAR PRO HOSE KIT Honda 1996 - 2019 75-90 HP Mount O/B
Model
Year Range

Brand
Cylinder
64-826491A 1
64-804378A 1
64-804378A 1
1998 - 2019
Honda
30-50 HP
Johnson/Evinrude 1997 - 2019
65-175 HP
64-804378A 1
Johnson/Evinrude 1991 - 2019
64-804378A 1
250-300 HP
Johnson/Evinrude 1991 - 2019
90-225 HP Ficht
64-804378A 1
Johnson/Evinrude 1996 - 2019 200-225 HP 64-804378A 1
Johnson/Evinrude 1998 - 2019 65-70 HP 4-Stroke 64-804378A 1
Mercury/Mariner 1984 - 1994 2.4/2,5 EFI 64-804378A 1
Mercury/Mariner 1989 - 2019 75-300 HP 64-804378A 1
Mercury/Mariner 1998 - 2019 30-60 HP 64-804378A 1
Mercury 2002 - 2019 225 EFI 64-889457A01
FourStroke
64-802905A14
2 hoses‑ 14ft(4.3m) Nissan/Tohatsu 1990 - 2019 90-140 HP 64-804378A 1
64-802905A16 Suzuki 1986 - 2019 100 HP 64-804378A 1
2 hoses ‑ 16 ft(4.9m) Suzuki 1986 - 2019 115-140 HP 64-804378A 1
64-802905A18 Suzuki 1986 - 2019 150-225 HP 64-804378A 1
2 hoses ‑ 18ft(5.3) Suzuki 1998 - 2019 65-70 HP 4-Stroke 64-804378A 1
64-802905A20 U S Marine/Force 1996 - 2019 90-120 HP 64-804378A 1
2 hoses ‑ 20ft(6.1m) Yamaha 1997 - 2019 100-225 HP 64-804378A 1
64-802905A22 Yamaha 1987 - 2019 225HP 64-804378A 1
2 hoses ‑ 22ft(6.7m)
244
