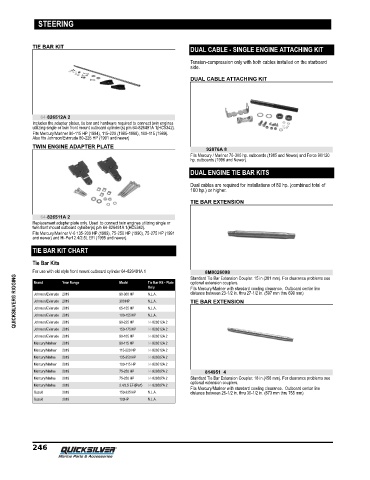

Page 255 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

TIE BAR KIT
DUAL CABLE - SINGLE ENGINE ATTACHING KIT
Tension‑compression only with both cables installed on the starboard
side.

DUAL CABLE ATTACHING KIT

64-826512A 2
Includes the adapter plates, tie bar and hardware required to connect twin engines
utilizing single or twin front mount outboard cylinder(s) p/n 64‑826491A 1(HC5342).
Fits Mercury/Mariner 90‑115 HP (1984), 115‑220 (1985‑1988), 100‑115 (1989).
Also fits Johnson/Evinrude 80‑225 HP (1991 and newer)
TWIN ENGINE ADAPTER PLATE
92876A 8
Fits Mercury / Mariner 70‑300 hp. outboards (1985 and Newer) and Force 90/120
hp. outboards (1996 and Newer).
DUAL ENGINE TIE BAR KITS

Dual cables are required for installations of 80 hp. (combined total of
160 hp.) or higher.
TIE BAR EXTENSION

64-826511A 2
Replacement adapter plate only. Used to connect twin engines utilizing single or
twin front mount outboard cylinder(s) p/n 64‑826491A 1(HC5342).
Fits Mercury/Mariner V‑6 135‑200 HP (1989), 75‑250 HP (1990), 75‑275 HP (1991
and newer) and Hi‑Perf 2.4/2.5L EFI (1995 and newer).
TIE BAR KIT CHART

Tie Bar Kits
For use with old style front mount outboard cylinder 64‑826491A 1 Tie Bar Kit - Plate Standard Tie Bar Extension Coupler. 15 in.(381 mm). For clearance problems see
8M0026098
QUICKSILVER® RIGGING Johnson/Evinrude 2019 90-300 HP Only Fits Mercury/Mariner with standard cowling clearance. Outboard center line
optional extension couplers.
Model

Year Range
Brand
distance between 23‑1/2 in. thru 27‑1/2 in. (597 mm thru 699 mm)
N.L.A.
N.L.A.
300 HP
Johnson/Evinrude 2019
TIE BAR EXTENSION
Johnson/Evinrude 2019
N.L.A.
65-155 HP
N.L.A.
Johnson/Evinrude 2019
100-155 HP
Johnson/Evinrude 2019
150-175 HP
Johnson/Evinrude 2019
64-826512A 2
Johnson/Evinrude 2019 90-225 HP 64-826512A 2
80-105 HP
64-826512A 2
Mercury/Mariner 2019 90-115 HP 64-826512A 2
Mercury/Mariner 2019 115-220 HP 64-826512A 2
Mercury/Marine 2019 135-250 HP 64-826507A 2
Mercury/Mariner 2019 100-115 HP 64-826512A 2
Mercury/Marine 2019 75-250 HP 64-826507A 2 814951 4
Mercury/Marine 2019 75-250 HP 64-826507A 2 Standard Tie Bar Extension Coupler. 18 in.(458 mm). For clearance problems see
optional extension couplers.
Mercury/Marine 2019 2.4/2,5 EFI(Perf) 64-826507A 2
Fits Mercury/Mariner with standard cowling clearance. Outboard center line
Suzuki 2019 150-225 HP N.L.A. distance between 26‑1/2 in. thru 30‑1/2 in. (673 mm thru 755 mm)
Suzuki 2019 100HP N.L.A.
