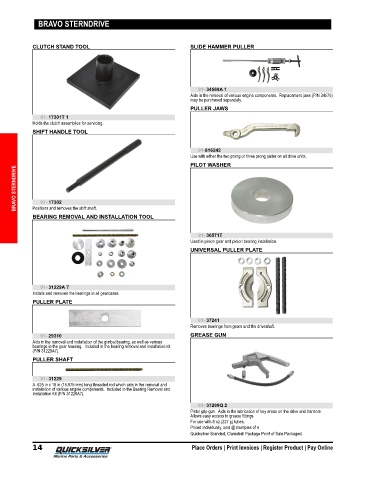

Page 21 - Mercury Service Tool Guide (2020) - 8M0163249

BRAVO STERNDRIVE

CLUTCH STAND TOOL SLIDE HAMMER PULLER

91- 34569A 1
Aids in the removal of various engine components. Replacement jaws (P/N 34570)
may be purchased separately.
PULLER JAWS
91- 17301T 1
Holds the clutch assemblies for servicing.
SHIFT HANDLE TOOL

91-816242
Use with either the two prong or three prong puller on all drive units.
PILOT WASHER
BRAVO STERNDRIVE 91- 17302

Positions and removes the shift shaft.
BEARING REMOVAL AND INSTALLATION TOOL

91- 36571T
Used in pinion gear and pinion bearing installation.
UNIVERSAL PULLER PLATE

91- 31229A 7
Installs and removes the bearings in all gearcases.
PULLER PLATE

91- 37241
Removes bearings from gears and the driveshaft.
91- 29310 GREASE GUN
Aids in the removal and installation of the gimbal bearing, as well as various
bearings in the gear housing. Included in the bearing removal and installation kit
(P/N 31229A7).
PULLER SHAFT

91- 31229
A .625 in x 18 in (15.875 mm) long threaded rod which aids in the removal and
installation of various engine components. Included in the Bearing Removal and
Installation Kit (P/N 31229A7).
91- 37299Q 2
Pistol grip gun. Aids in the lubrication of key areas on the drive and transom.
Allows easy access to grease fittings.
For use with 8 oz.(227 g) tubes.
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
