P. 22

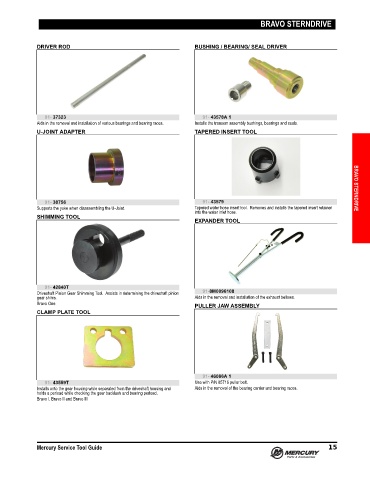

BRAVO STERNDRIVE
DRIVER ROD BUSHING / BEARING/ SEAL DRIVER
91- 37323 91- 43578A 1
Aids in the removal and installation of various bearings and bearing races. Installs the transom assembly bushings, bearings and seals.
U-JOINT ADAPTER TAPERED INSERT TOOL
91- 38756 91- 43579 BRAVO STERNDRIVE
Supports the yoke when disassembling the U‑Joint. Tapered water hose insert tool. Removes and installs the tapered insert retainer
into the water inlet hose.
SHIMMING TOOL
EXPANDER TOOL
91- 42840T
Driveshaft Pinion Gear Shimming Tool. Assists in determining the driveshaft pinion 91-8M0096108
gear shims. Aids in the removal and installation of the exhaust bellows.
Bravo One.
PULLER JAW ASSEMBLY
CLAMP PLATE TOOL
91- 46086A 1
91- 43559T Use with P/N 85716 puller bolt.
Installs onto the gear housing while separated from the driveshaft housing and Aids in the removal of the bearing carrier and bearing races.
holds a perload while checking the gear backlash and bearing perload.
Bravo I, Bravo II and Bravo III
Mercury Service Tool Guide 15
