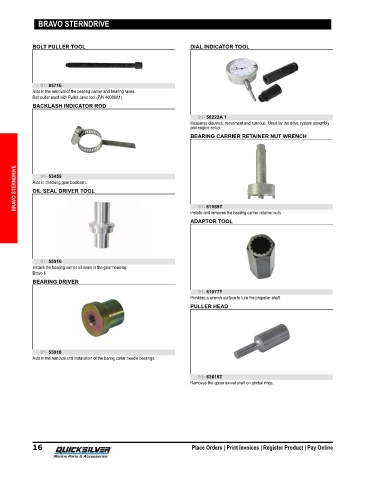

P. 23
BRAVO STERNDRIVE
BOLT PULLER TOOL DIAL INDICATOR TOOL
91- 85716
Aids in the removal of the bearing carrier and bearing races..
Bolt puller used with Puller Jaws tool (P/N 46086A1).
BACKLASH INDICATOR ROD
91- 58222A 1
Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
BEARING CARRIER RETAINER NUT WRENCH
BRAVO STERNDRIVE Aids in checking gear backlash.
91- 53459
OIL SEAL DRIVER TOOL
91- 61069T
Installs and removes the bearing carrier retainer nuts.
ADAPTOR TOOL
91- 55916
Installs the bearing carrier oil seals in the gear housing.
Bravo II
BEARING DRIVER
91- 61077T
Provides a wrench surface to turn the propeller shaft.
PULLER HEAD
91- 55918
Aids in the removal and installation of the baring carier needle bearings.
91- 63616T
Removes the upper swivel shaft on gimbal rings.
