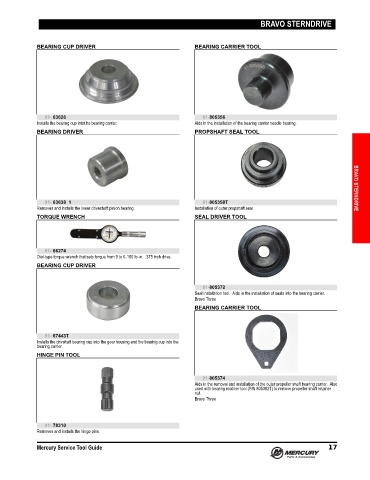

Page 24 - Mercury Service Tool Guide (2020) - 8M0163249

BRAVO STERNDRIVE

BEARING CUP DRIVER BEARING CARRIER TOOL

91- 63626 91-805356
Installs the bearing cup intot he bearing carrier. Aids in the installation of the bearing carrier needle bearing.
BEARING DRIVER PROPSHAFT SEAL TOOL

91- 63638 1 91-805358T BRAVO STERNDRIVE
Removes and installs the lower driveshaft pinion bearing. Installation of outer propshaft seal.
TORQUE WRENCH SEAL DRIVER TOOL

91- 66274
Dial‑type torque wrench that sets torque from 9 to 0‑150 lb‑in. .375 inch drive.
BEARING CUP DRIVER

91-805372
Seal installation tool. Aids in the installation of seals into the bearing carrier.
Bravo Three
BEARING CARRIER TOOL

91- 67443T
Installs the drivshaft bearing cup into the gear housing and the bearing cup into the
bearing carrier.
HINGE PIN TOOL

91-805374
Aids in the removal and installation of the outer propeller shaft bearing carrier. Also
used with bearing reatiner tool (P/N 805382T) to remove propeller shaft retainer
nut.
Bravo Three

91- 78310
Removes and installs the hinge pins.

Mercury Service Tool Guide 17
