Instrumentation and Controls

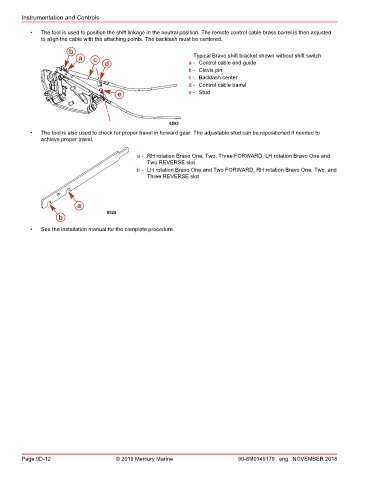

• The tool is used to position the shift linkage in the neutral position. The remote control cable brass barrel is then adjusted
to align the cable with the attaching points. The backlash must be centered.

b
a c Typical Bravo shift bracket shown without shift switch
d a - Control cable end guide
b - Clevis pin
c - Backlash center
d - Control cable barrel
e e - Stud

8593
• The tool is also used to check for proper travel in forward gear. The adjustable stud can be repositioned if needed to
achieve proper travel.

a - RH rotation Bravo One, Two, Three FORWARD, LH rotation Bravo One and
Two REVERSE slot
b - LH rotation Bravo One and Two FORWARD, RH rotation Bravo One, Two, and
Three REVERSE slot

a
8525
b
• See the installation manual for the complete procedure.
