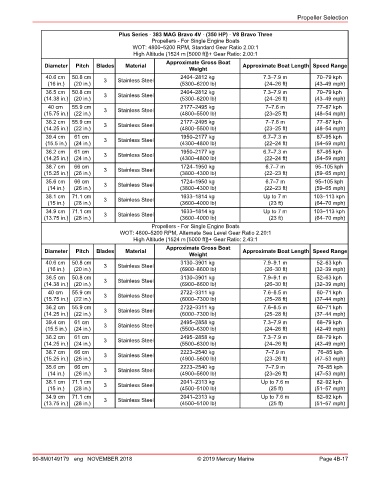

Propeller Selection

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo Three
Propellers ‑ For Single Engine Boats
WOT: 4800–5200 RPM, Standard Gear Ratio 2.00:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.00:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 2404–2812 kg 7.3–7.9 m 70–79 kph
(16 in.) (20 in.) 3 Stainless Steel (5300–6200 lb) (24–26 ft) (43–49 mph)
36.5 cm 50.8 cm 3 Stainless Steel 2404–2812 kg 7.3–7.9 m 70–79 kph
(14.38 in.) (20 in.) (5300–6200 lb) (24–26 ft) (43–49 mph)
40 cm 55.9 cm 2177–2495 kg 7–7.6 m 77–87 kph
(15.75 in.) (22 in.) 3 Stainless Steel (4800–5500 lb) (23–25 ft) (48–54 mph)
36.2 cm 55.9 cm 2177–2495 kg 7–7.6 m 77–87 kph
(14.25 in.) (22 in.) 3 Stainless Steel (4800–5500 lb) (23–25 ft) (48–54 mph)
39.4 cm 61 cm 3 Stainless Steel 1950–2177 kg 6.7–7.3 m 87–95 kph
(15.5 in.) (24 in.) (4300–4800 lb) (22–24 ft) (54–59 mph)
36.2 cm 61 cm 1950–2177 kg 6.7–7.3 m 87–95 kph
(14.25 in.) (24 in.) 3 Stainless Steel (4300–4800 lb) (22–24 ft) (54–59 mph)
38.7 cm 66 cm 3 Stainless Steel 1724–1950 kg 6.7–7 m 95–105 kph
(15.25 in.) (26 in.) (3800–4300 lb) (22–23 ft) (59–65 mph)
35.6 cm 66 cm 3 Stainless Steel 1724–1950 kg 6.7–7 m 95–105 kph
(14 in.) (26 in.) (3800–4300 lb) (22–23 ft) (59–65 mph)
38.1 cm 71.1 cm 1633–1814 kg Up to 7 m 103–113 kph
(15 in.) (28 in.) 3 Stainless Steel (3600–4000 lb) (23 ft) (64–70 mph)
34.9 cm 71.1 cm 3 Stainless Steel 1633–1814 kg Up to 7 m 103–113 kph
(13.75 in.) (28 in.) (3600–4000 lb) (23 ft) (64–70 mph)
Propellers ‑ For Single Engine Boats
WOT: 4800–5200 RPM, Alternate Sea Level Gear Ratio 2.20:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.43:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 3130–3901 kg 7.9–9.1 m 52–63 kph
(16 in.) (20 in.) 3 Stainless Steel (6900–8600 lb) (26–30 ft) (32–39 mph)
36.5 cm 50.8 cm 3 Stainless Steel 3130–3901 kg 7.9–9.1 m 52–63 kph
(14.38 in.) (20 in.) (6900–8600 lb) (26–30 ft) (32–39 mph)
40 cm 55.9 cm 2722–3311 kg 7.6–8.5 m 60–71 kph
(15.75 in.) (22 in.) 3 Stainless Steel (6000–7300 lb) (25–28 ft) (37–44 mph)
36.2 cm 55.9 cm 2722–3311 kg 7.6–8.5 m 60–71 kph
(14.25 in.) (22 in.) 3 Stainless Steel (6000–7300 lb) (25–28 ft) (37–44 mph)
39.4 cm 61 cm 3 Stainless Steel 2495–2858 kg 7.3–7.9 m 68–79 kph
(15.5 in.) (24 in.) (5500–6300 lb) (24–26 ft) (42–49 mph)
36.2 cm 61 cm 2495–2858 kg 7.3–7.9 m 68–79 kph
(14.25 in.) (24 in.) 3 Stainless Steel (5500–6300 lb) (24–26 ft) (42–49 mph)
38.7 cm 66 cm 3 Stainless Steel 2223–2540 kg 7–7.9 m 76–85 kph
(15.25 in.) (26 in.) (4900–5600 lb) (23–26 ft) (47–53 mph)
35.6 cm 66 cm 3 Stainless Steel 2223–2540 kg 7–7.9 m 76–85 kph
(14 in.) (26 in.) (4900–5600 lb) (23–26 ft) (47–53 mph)
38.1 cm 71.1 cm 2041–2313 kg Up to 7.6 m 82–92 kph
(15 in.) (28 in.) 3 Stainless Steel (4500–5100 lb) (25 ft) (51–57 mph)
34.9 cm 71.1 cm 3 Stainless Steel 2041–2313 kg Up to 7.6 m 82–92 kph
(13.75 in.) (28 in.) (4500–5100 lb) (25 ft) (51–57 mph)

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 4B-17
