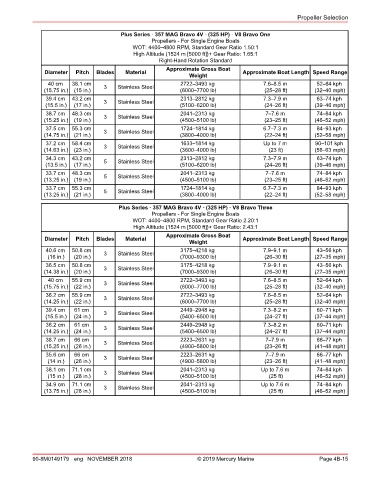

Page 63 - REPOWER REFERENCE GUIDE (2020)

Propeller Selection

Plus Series ‑ 357 MAG Bravo 4V ‑ (325 HP) ‑ V8 Bravo One
Propellers ‑ For Single Engine Boats
WOT: 4400–4800 RPM, Standard Gear Ratio 1.50:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 1.65:1
Right‑Hand Rotation Standard
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 2722–3493 kg 7.6–8.5 m 52–64 kph
(15.75 in.) (15 in.) 3 Stainless Steel (6000–7700 lb) (25–28 ft) (32–40 mph)
39.4 cm 43.2 cm 3 Stainless Steel 2313–2812 kg 7.3–7.9 m 63–74 kph
(15.5 in.) (17 in.) (5100–6200 lb) (24–26 ft) (39–46 mph)
38.7 cm 48.3 cm 2041–2313 kg 7–7.6 m 74–84 kph
(15.25 in.) (19 in.) 3 Stainless Steel (4500–5100 lb) (23–25 ft) (46–52 mph)
37.5 cm 55.3 cm 3 Stainless Steel 1724–1814 kg 6.7–7.3 m 84–93 kph
(14.75 in.) (21 in.) (3800–4000 lb) (22–24 ft) (52–58 mph)
37.2 cm 58.4 cm 1633–1814 kg Up to 7 m 90–101 kph
(14.63 in.) (23 in.) 3 Stainless Steel (3600–4000 lb) (23 ft) (56–63 mph)
34.3 cm 43.2 cm 2313–2812 kg 7.3–7.9 m 63–74 kph
(13.5 in.) (17 in.) 5 Stainless Steel (5100–6200 lb) (24–26 ft) (39–46 mph)
33.7 cm 48.3 cm 5 Stainless Steel 2041–2313 kg 7–7.6 m 74–84 kph
(13.25 in.) (19 in.) (4500–5100 lb) (23–25 ft) (46–52 mph)
33.7 cm 55.3 cm 1724–1814 kg 6.7–7.3 m 84–93 kph
(13.25 in.) (21 in.) 5 Stainless Steel (3800–4000 lb) (22–24 ft) (52–58 mph)

Plus Series ‑ 357 MAG Bravo 4V ‑ (325 HP) ‑ V8 Bravo Three
Propellers ‑ For Single Engine Boats
WOT: 4400–4800 RPM, Standard Gear Ratio 2.20:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.43:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 3 Stainless Steel 3175–4218 kg 7.9–9.1 m 43–56 kph
(16 in.) (20 in.) (7000–9300 lb) (26–30 ft) (27–35 mph)
36.5 cm 50.8 cm 3175–4218 kg 7.9–9.1 m 43–56 kph
(14.38 in.) (20 in.) 3 Stainless Steel (7000–9300 lb) (26–30 ft) (27–35 mph)
40 cm 55.9 cm 2722–3493 kg 7.6–8.5 m 52–64 kph
(15.75 in.) (22 in.) 3 Stainless Steel (6000–7700 lb) (25–28 ft) (32–40 mph)
36.2 cm 55.9 cm 3 Stainless Steel 2722–3493 kg 7.6–8.5 m 52–64 kph
(14.25 in.) (22 in.) (6000–7700 lb) (25–28 ft) (32–40 mph)
39.4 cm 61 cm 2449–2948 kg 7.3–8.2 m 60–71 kph
(15.5 in.) (24 in.) 3 Stainless Steel (5400–6500 lb) (24–27 ft) (37–44 mph)
36.2 cm 61 cm 3 Stainless Steel 2449–2948 kg 7.3–8.2 m 60–71 kph
(14.25 in.) (24 in.) (5400–6500 lb) (24–27 ft) (37–44 mph)
38.7 cm 66 cm 2223–2631 kg 7–7.9 m 66–77 kph
(15.25 in.) (26 in.) 3 Stainless Steel (4900–5800 lb) (23–26 ft) (41–48 mph)
35.6 cm 66 cm 2223–2631 kg 7–7.9 m 66–77 kph
(14 in.) (26 in.) 3 Stainless Steel (4900–5800 lb) (23–26 ft) (41–48 mph)
38.1 cm 71.1 cm 3 Stainless Steel 2041–2313 kg Up to 7.6 m 74–84 kph
(15 in.) (28 in.) (4500–5100 lb) (25 ft) (46–52 mph)
34.9 cm 71.1 cm 2041–2313 kg Up to 7.6 m 74–84 kph
(13.75 in.) (28 in.) 3 Stainless Steel (4500–5100 lb) (25 ft) (46–52 mph)

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 4B-15
