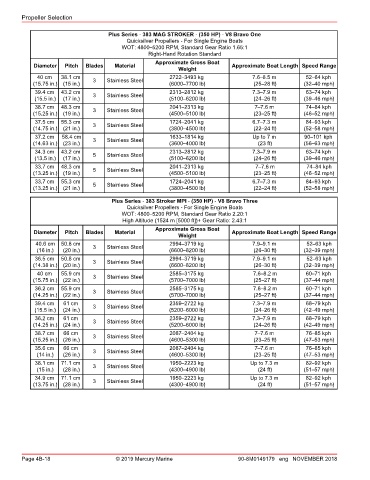

Page 66 - REPOWER REFERENCE GUIDE (2020)

Propeller Selection

Plus Series ‑ 383 MAG STROKER ‑ (350 HP) ‑ V8 Bravo One
Quicksilver Propellers ‑ For Single Engine Boats
WOT: 4800–5200 RPM, Standard Gear Ratio 1.65:1
Right‑Hand Rotation Standard
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 2722–3493 kg 7.6–8.5 m 52–64 kph
(15.75 in.) (15 in.) 3 Stainless Steel (6000–7700 lb) (25–28 ft) (32–40 mph)
39.4 cm 43.2 cm 3 Stainless Steel 2313–2812 kg 7.3–7.9 m 63–74 kph
(15.5 in.) (17 in.) (5100–6200 lb) (24–26 ft) (39–46 mph)
38.7 cm 48.3 cm 2041–2313 kg 7–7.6 m 74–84 kph
(15.25 in.) (19 in.) 3 Stainless Steel (4500–5100 lb) (23–25 ft) (46–52 mph)
37.5 cm 55.3 cm 1724–2041 kg 6.7–7.3 m 84–93 kph
(14.75 in.) (21 in.) 3 Stainless Steel (3800–4500 lb) (22–24 ft) (52–58 mph)
37.2 cm 58.4 cm 3 Stainless Steel 1633–1814 kg Up to 7 m 90–101 kph
(14.63 in.) (23 in.) (3600–4000 lb) (23 ft) (56–63 mph)
34.3 cm 43.2 cm 2313–2812 kg 7.3–7.9 m 63–74 kph
(13.5 in.) (17 in.) 5 Stainless Steel (5100–6200 lb) (24–26 ft) (39–46 mph)
33.7 cm 48.3 cm 5 Stainless Steel 2041–2313 kg 7–7.6 m 74–84 kph
(13.25 in.) (19 in.) (4500–5100 lb) (23–25 ft) (46–52 mph)
33.7 cm 55.3 cm 1724–2041 kg 6.7–7.3 m 84–93 kph
(13.25 in.) (21 in.) 5 Stainless Steel (3800–4500 lb) (22–24 ft) (52–58 mph)

Plus Series ‑ 383 Stroker MPI ‑ (350 HP) ‑ V8 Bravo Three
Quicksilver Propellers ‑ For Single Engine Boats
WOT: 4800–5200 RPM, Standard Gear Ratio 2.20:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.43:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 2994–3719 kg 7.9–9.1 m 52–63 kph
(16 in.) (20 in.) 3 Stainless Steel (6600–8200 lb) (26–30 ft) (32–39 mph)
36.5 cm 50.8 cm 3 Stainless Steel 2994–3719 kg 7.9–9.1 m 52–63 kph
(14.38 in.) (20 in.) (6600–8200 lb) (26–30 ft) (32–39 mph)
40 cm 55.9 cm 2585–3175 kg 7.6–8.2 m 60–71 kph
(15.75 in.) (22 in.) 3 Stainless Steel (5700–7000 lb) (25–27 ft) (37–44 mph)
36.2 cm 55.9 cm 3 Stainless Steel 2585–3175 kg 7.6–8.2 m 60–71 kph
(14.25 in.) (22 in.) (5700–7000 lb) (25–27 ft) (37–44 mph)
39.4 cm 61 cm 2359–2722 kg 7.3–7.9 m 68–79 kph
(15.5 in.) (24 in.) 3 Stainless Steel (5200–6000 lb) (24–26 ft) (42–49 mph)
36.2 cm 61 cm 2359–2722 kg 7.3–7.9 m 68–79 kph
(14.25 in.) (24 in.) 3 Stainless Steel (5200–6000 lb) (24–26 ft) (42–49 mph)
38.7 cm 66 cm 3 Stainless Steel 2087–2404 kg 7–7.6 m 76–85 kph
(15.25 in.) (26 in.) (4600–5300 lb) (23–25 ft) (47–53 mph)
35.6 cm 66 cm 2087–2404 kg 7–7.6 m 76–85 kph
(14 in.) (26 in.) 3 Stainless Steel (4600–5300 lb) (23–25 ft) (47–53 mph)
38.1 cm 71.1 cm 3 Stainless Steel 1950–2223 kg Up to 7.3 m 82–92 kph
(15 in.) (28 in.) (4300–4900 lb) (24 ft) (51–57 mph)
34.9 cm 71.1 cm 1950–2223 kg Up to 7.3 m 82–92 kph
(13.75 in.) (28 in.) 3 Stainless Steel (4300–4900 lb) (24 ft) (51–57 mph)

Page 4B-18 © 2019 Mercury Marine 90-8M0149179 eng NOVEMBER 2018
