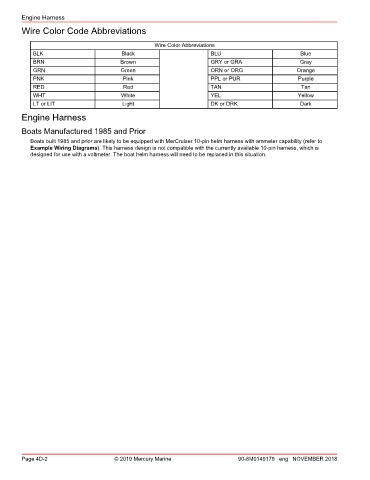

Engine Harness
Wire Color Code Abbreviations
Wire Color Abbreviations
BLK Black BLU Blue
BRN Brown GRY or GRA Gray
GRN Green ORN or ORG Orange
PNK Pink PPL or PUR Purple
RED Red TAN Tan
WHT White YEL Yellow
LT or LIT Light DK or DRK Dark
Engine Harness
Boats Manufactured 1985 and Prior
Boats built 1985 and prior are likely to be equipped with MerCruiser 10‑pin helm harness with ammeter capability (refer to
Example Wiring Diagrams). This harness design is not compatible with the currently available 10‑pin harness, which is
designed for use with a voltmeter. The boat helm harness will need to be replaced in this situation.
Page 4D-2 © 2019 Mercury Marine 90-8M0149179 eng NOVEMBER 2018
