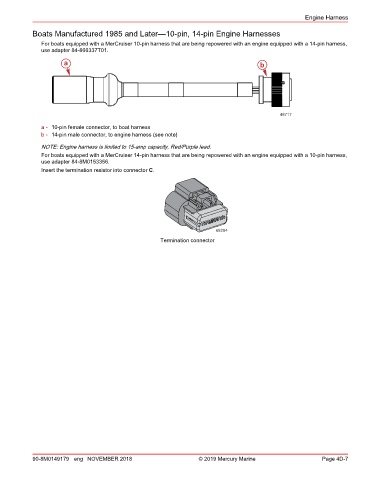

Engine Harness

            Boats Manufactured 1985 and Later—10‑pin, 14‑pin Engine Harnesses
               For boats equipped with a MerCruiser 10‑pin harness that are being repowered with an engine equipped with a 14‑pin harness,
               use adapter 84-866337T01.
                      a                                                                b









                                                                                              48717
               a - 10‑pin female connector, to boat harness
               b - 14‑pin male connector, to engine harness (see note)

               NOTE: Engine harness is limited to 15‑amp capacity, Red/Purple lead.
               For boats equipped with a MerCruiser 14‑pin harness that are being repowered with an engine equipped with a 10‑pin harness,
               use adapter 84-8M0153356.
               Insert the termination resistor into connector C.











                                                                        68284
                                                      Termination connector
