Engine Harness








                                                                                               b



                      a



















                                                                                              c



























                                                                           d






                                                                                                                48532

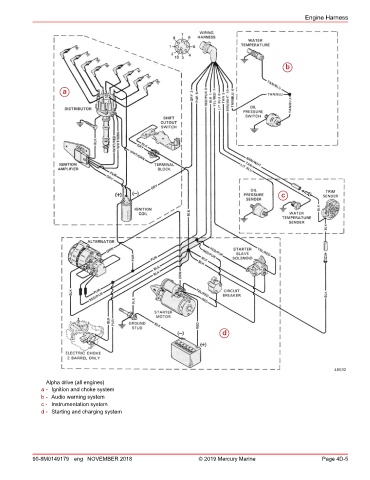

                Alpha drive (all engines)
               a - Ignition and choke system
               b - Audio warning system
               c - Instrumentation system
               d - Starting and charging system
