Accessories

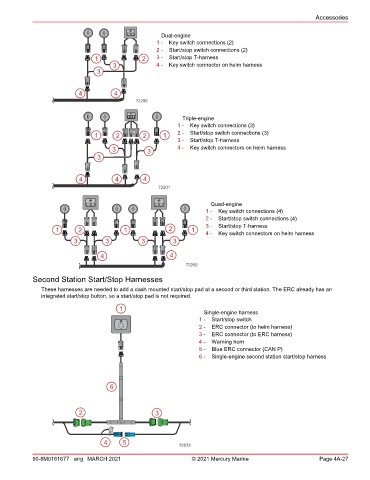

Dual-engine
1 - Key switch connections (2)
2 - Start/stop switch connections (2)
1 2 3 - Start/stop T‑harness
3 4 - Key switch connector on helm harness
3

4 4
72200

Triple-engine
1 - Key switch connections (3)
1 2 2 1 2 - Start/stop switch connections (3)
3 - Start/stop T‑harness
3 3 4 - Key switch connectors on helm harness
3

4 4 4
72201

Quad-engine
1 - Key switch connections (4)
2 - Start/stop switch connections (4)

1 2 1 2 1 3 - Start/stop T‑harness
4 -
Key switch connectors on helm harness
3 3 3 3
4 4
72202
Second Station Start/Stop Harnesses

These harnesses are needed to add a dash mounted start/stop pad at a second or third station. The ERC already has an
integrated start/stop button, so a start/stop pad is not required.

1
Single-engine harness
1 - Start/stop switch
2 - ERC connector (to helm harness)
3 - ERC connector (to ERC harness)
4 - Warning horn
5 - Blue ERC connector (CAN P)
6 - Single‑engine second station start/stop harness

6

2 3

4 5 72572
