Legacy Controls

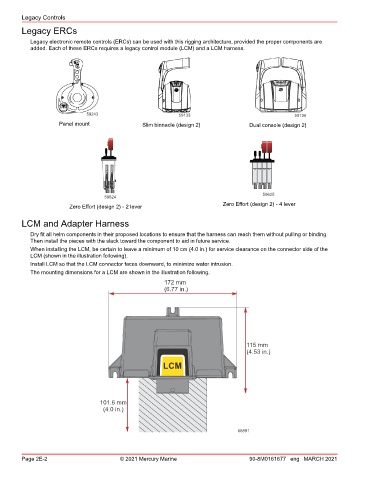

Legacy ERCs

Legacy electronic remote controls (ERCs) can be used with this rigging architecture, provided the proper components are
added. Each of these ERCs requires a legacy control module (LCM) and a LCM harness.

59243 59133 59136
Panel mount Slim binnacle (design 2) Dual console (design 2)

59625
59624
Zero Effort (design 2) - 2 lever Zero Effort (design 2) - 4 lever

LCM and Adapter Harness

Dry fit all helm components in their proposed locations to ensure that the harness can reach them without pulling or binding.
Then install the pieces with the slack toward the component to aid in future service.
When installing the LCM, be certain to leave a minimum of 10 cm (4.0 in.) for service clearance on the connector side of the
LCM (shown in the illustration following).
Install LCM so that the LCM connector faces downward, to minimize water intrusion.
The mounting dimensions for a LCM are shown in the illustration following.

172 mm
(6.77 in.)

115 mm
(4.53 in.)
LCM

101.6 mm
(4.0 in.)

68891
