Legacy Controls

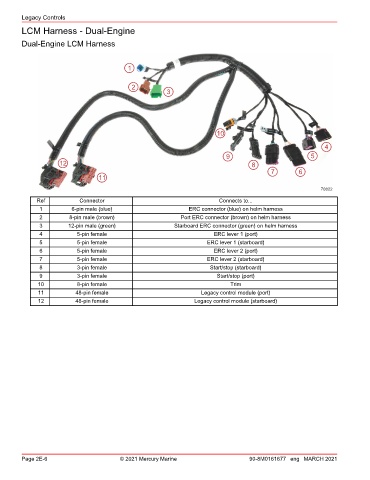

LCM Harness ‑ Dual‑Engine
Dual‑Engine LCM Harness
1
2
3
10
4
9 5
12 8
7 6
11
70822
Ref Connector Connects to...
1 6‑pin male (blue) ERC connector (blue) on helm harness
2 8‑pin male (brown) Port ERC connector (brown) on helm harness
3 12‑pin male (green) Starboard ERC connector (green) on helm harness
4 5‑pin female ERC lever 1 (port)
5 5‑pin female ERC lever 1 (starboard)
6 5‑pin female ERC lever 2 (port)
7 5‑pin female ERC lever 2 (starboard)
8 3‑pin female Start/stop (starboard)
9 3‑pin female Start/stop (port)
10 8‑pin female Trim
11 48‑pin female Legacy control module (port)
12 48‑pin female Legacy control module (starboard)
Page 2E-6 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
