Legacy Controls

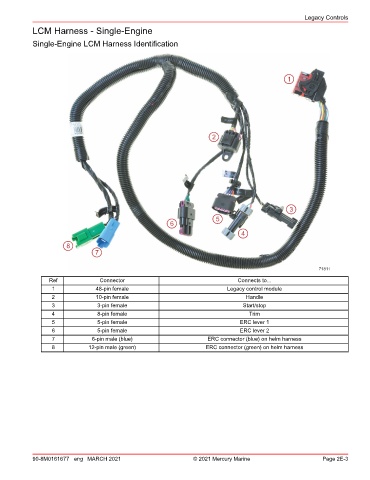

LCM Harness ‑ Single‑Engine

Single‑Engine LCM Harness Identification

1

2

3
5
6
4

8
7

71811
Ref Connector Connects to...
1 48‑pin female Legacy control module
2 10‑pin female Handle
3 3‑pin female Start/stop
4 8‑pin female Trim
5 5‑pin female ERC lever 1
6 5‑pin female ERC lever 2
7 6‑pin male (blue) ERC connector (blue) on helm harness
8 12‑pin male (green) ERC connector (green) on helm harness

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 2E-3
