Legacy Controls

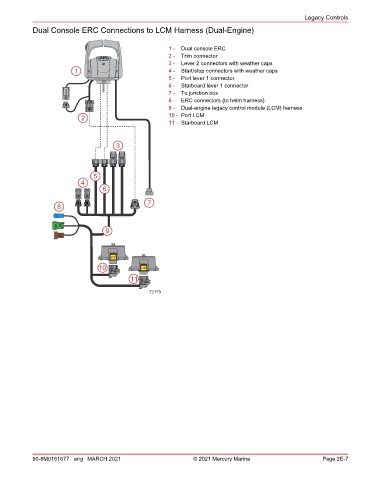

Dual Console ERC Connections to LCM Harness (Dual‑Engine)

1 - Dual console ERC
2 - Trim connector
3 - Lever 2 connectors with weather caps
1 4 - Start/stop connectors with weather caps
5 - Port lever 1 connector
6 - Starboard lever 1 connector
7 - To junction box
8 - ERC connectors (to helm harness)
9 - Dual‑engine legacy control module (LCM) harness
10 - Port LCM
2
11 - Starboard LCM

3

5
4
6

7
8

9

LCM
10 LCM

11
