Legacy Controls

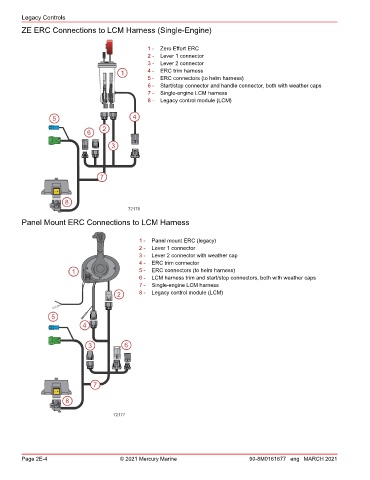

ZE ERC Connections to LCM Harness (Single‑Engine)

1 - Zero Effort ERC
2 - Lever 1 connector
3 - Lever 2 connector
1 4 - ERC trim harness
5 - ERC connectors (to helm harness)
6 - Start/stop connector and handle connector, both with weather caps
7 - Single‑engine LCM harness
8 - Legacy control module (LCM)

5 4
2
6
3

7

LCM
8
72178
Panel Mount ERC Connections to LCM Harness

1 - Panel mount ERC (legacy)
2 - Lever 1 connector
3 - Lever 2 connector with weather cap
F R
4 - ERC trim connector
1 5 - ERC connectors (to helm harness)
6 - LCM harness trim and start/stop connectors, both with weather caps
7 - Single‑engine LCM harness
2 8 - Legacy control module (LCM)

5
4

3 6

7
LCM
8

72177
