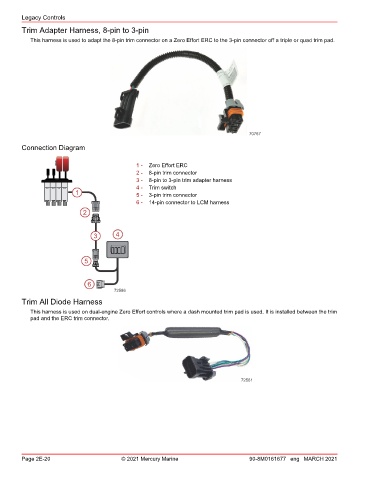

Legacy Controls
Trim Adapter Harness, 8‑pin to 3‑pin
This harness is used to adapt the 8‑pin trim connector on a Zero Effort ERC to the 3‑pin connector off a triple or quad trim pad.
70767
Connection Diagram
1 - Zero Effort ERC
2 - 8‑pin trim connector
3 - 8‑pin to 3‑pin trim adapter harness
4 - Trim switch
1 5 - 3‑pin trim connector
6 - 14‑pin connector to LCM harness
2
3 4
5
6
72586
Trim All Diode Harness
This harness is used on dual‑engine Zero Effort controls where a dash mounted trim pad is used. It is installed between the trim
pad and the ERC trim connector.
72561
