Legacy Controls

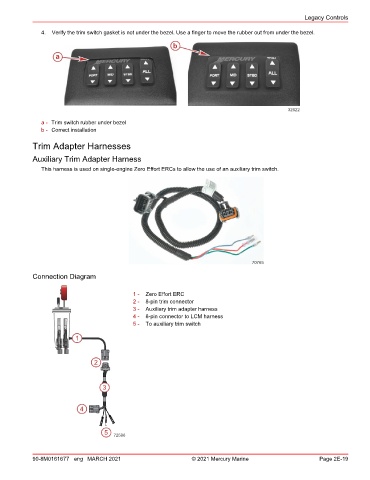

4. Verify the trim switch gasket is not under the bezel. Use a finger to move the rubber out from under the bezel.

b
a

32622
a - Trim switch rubber under bezel
b - Correct installation

Trim Adapter Harnesses

Auxiliary Trim Adapter Harness
This harness is used on single‑engine Zero Effort ERCs to allow the use of an auxiliary trim switch.

70765
Connection Diagram

1 - Zero Effort ERC
2 - 8‑pin trim connector
3 - Auxiliary trim adapter harness
4 - 8‑pin connector to LCM harness
5 - To auxiliary trim switch

1

2

3

4

5
72596
