Legacy Controls

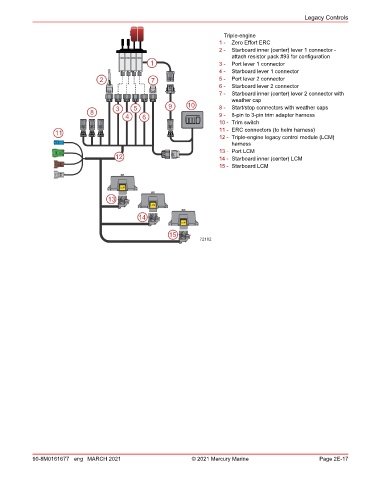

Triple-engine
1 - Zero Effort ERC
2 - Starboard inner (center) lever 1 connector ‑
attach resistor pack #93 for configuration
1 3 - Port lever 1 connector
4 - Starboard lever 1 connector
2 7 5 - Port lever 2 connector
6 - Starboard lever 2 connector
7 - Starboard inner (center) lever 2 connector with
weather cap
3 5 9 10 8 - Start/stop connectors with weather caps
8
4 6 9 - 8‑pin to 3‑pin trim adapter harness
10 - Trim switch
11 - ERC connectors (to helm harness)
11
12 - Triple‑engine legacy control module (LCM)
harness
13 - Port LCM
12 14 - Starboard inner (center) LCM
15 - Starboard LCM
LCM
13
LCM
14
LCM
15
72182
