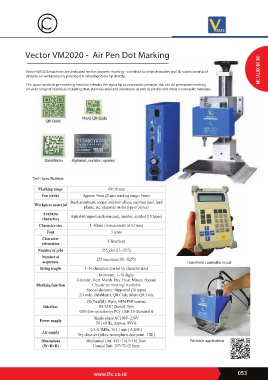

Page 9 - LFC Catalogue metalworking

Vector VM2020 - Air Pen Dot Marking
metalworking

Vector VM2020 machines are dedicated for the dot peen marking – a method to write characters and 2D-codes consists of
dimples on workpieces by pressing the vibrating stylus tip directly.

The Japan made air pen marking machine, vibrates the stylus tip by pneumatic pressure. You can do permanent marking
on wide range of materials, including steel, stainless-steel and aluminum, as well as plastics and other nonmetallic materials.

Tech Specication:

Marking range 60×30 mm
Pen stroke Approx. 9mm (Z-axis marking range: 5mm)
Steel, aluminum, copper and their alloys, stainless steel, hard
Workpiece material plastic, etc. (depends on the type of stylus)
Available Alphabet (uppercase/lowercase), number, symbol (18 types)
characters
Character size 1~30mm (in increments of 0.1mm)
Font 3 types
Character 8 directions
orientation
Number of jobs 255 jobs (J1~J255)
Number of 255 sequences (S1~S255)
sequences Handheld controller input
String length 1~36 characters (varied by character size)
Increment: 1~10 digits
Calendar: Year. Month. Day. Hour. Minute. Second
Marking function Circular arc marking: Available
Special character: Supported (16 types)
2D code: DataMatrix, QR Code, Micro QR Code
I/O(Parallel): 50pin, NPN/PNP connect
Interface RS-232C (Serial): 9pin
USB (for operation by PC): USB 2.0 Standard-B

Power supply Single-phase AC100V~230V
50 / 60 Hz, Approx. 80VA
0.3~0.5MPa, 30 L / min ( A.N.R.)
Air supply
Dry clean air (below atmospheric dew point -17 )
Dimensions Mechanical Unit: 145×114.5×102.5mm Portable application
(W×H×D) Control Unit: 297×75×210mm
