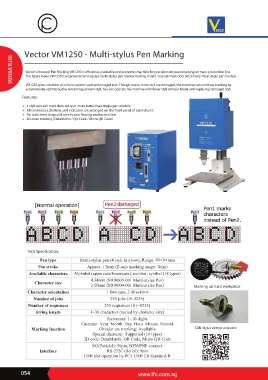

Vector VM1250 - Multi-stylus Pen Marking

Vector Ultrasonic Pen Marking VM1250 is oered as a versatile and economic machine for precision dot peen marking on mass production line.
The Japan made VM1250 is air powered and equips multi-stylus pen identer (having 4 styli). You can mark dots twice faster than single pen models.

VM1250 gives vibration priority to unworn and undamaged styli. Though one or more styli are damaged, the machine can continue marking by
metalworking
automatically optimizing the remaining unworn styli. You can operate the machine with fewer styli without break until replacing damaged styli.
Features:

+ 4 styli pen can mark dots twice or more faster than single pen models.
+ All connectors, buttons and indicators are arranged on the front panel of control unit
+ For both bench top and continuous owing production line
+ 2D code marking (DataMatrix / QR Code / Micro QR Code)

Tech Specication:
Pen type Multi-stylus pen (4 styli in a row), Range: 80×30 mm
Pen stroke Approx. 13mm (Z-axis marking range: 7mm)
Available characters Alphabet (uppercase/lowercase), number, symbol (18 types)
Character size 4.34mm (MU0005-001 Multi-stylus Pen) Marking on hard workpiece
3.50mm (MU0004-001 Multi-stylus Pen)
Character orientation 1 font type, 2 directions
Number of jobs 255 jobs (J1~J255)
Number of sequences 255 sequences (S1~S255)
String length 1~36 characters (varied by character size)
Increment: 1~10 digits
Calendar: Year. Month. Day. Hour. Minute. Second
Marking function Circular arc marking: Available CBN Stylus identer available
Special character: Supported (16 types)
2D code: DataMatrix, QR Code, Micro QR Code
I/O(Parallel): 50pin, NPN/PNP connect
Interface RS-232C (Serial): 9pin
USB (for operation by PC): USB 2.0 Standard-B
