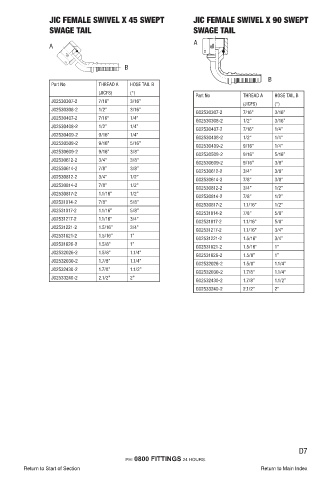

Page 119 - Fluid Fitting 2018_extended

JIC FEMALE SWIVEL X 45 SWEPT JIC FEMALE SWIVEL X 90 SWEPT
SWAGE TAIL SWAGE TAIL

A
A

B
B
Part No THREAD A HOSE TAIL B
(JICFS) (“)
Part No THREAD A HOSE TAIL B
J02530307-2 7/16” 3/16”
(JICFS) (“)
J02530308-2 1/2” 3/16”
G02530307-2 7/16” 3/16”
J02530407-2 7/16” 1/4”
G02530308-2 1/2” 3/16”
J02530408-2 1/2” 1/4” G02530407-2 7/16” 1/4”
J02530409-2 9/16” 1/4”
G02530408-2 1/2” 1/4”
J02530509-2 9/16” 5/16”
G02530409-2 9/16” 1/4”
J02530609-2 9/16” 3/8”
G02530509-2 9/16” 5/16”
J02530612-2 3/4” 3/8”
G02530609-2 9/16” 3/8”
J02530614-2 7/8” 3/8”
G02530612-2 3/4” 3/8”
J02530812-2 3/4” 1/2”
G02530614-2 7/8” 3/8”
J02530814-2 7/8” 1/2”
G02530812-2 3/4” 1/2”
J02530817-2 1.1/16” 1/2”
G02530814-2 7/8” 1/2”
J02531014-2 7/8” 5/8”
G02530817-2 1.1/16” 1/2”
J02531017-2 1.1/16” 5/8” G02531014-2 7/8” 5/8”
J02531217-2 1.1/16” 3/4” G02531017-2 1.1/16” 5/8”
J02531221-2 1.5/16” 3/4”
G02531217-2 1.1/16” 3/4”
J02531621-2 1.5/16” 1”
G02531221-2 1.5/16” 3/4”
J02531626-2 1.5/8” 1”
G02531621-2 1.5/16” 1”
J02532026-2 1.5/8” 1.1/4”
G02531626-2 1.5/8” 1”
J02532030-2 1.7/8” 1.1/4”
G02532026-2 1.5/8” 1.1/4”
J02532430-2 1.7/8” 1.1/2”
G02532030-2 1.7/8” 1.1/4”
J02533240-2 2.1/2” 2”
G02532430-2 1.7/8” 1.1/2”
G02533240-2 2.1/2” 2”

D7
