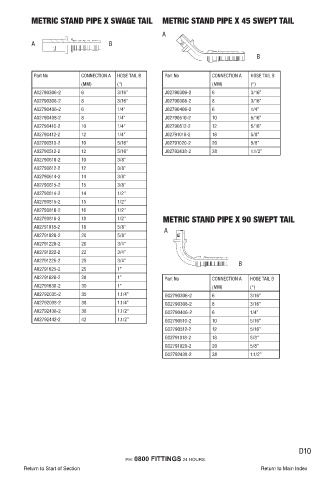

Page 122 - Fluid Fitting 2018_extended

METRIC STAND PIPE X SWAGE TAIL METRIC STAND PIPE X 45 SWEPT TAIL

A
A B

B

Part No CONNECTION A HOSE TAIL B Part No CONNECTION A HOSE TAIL B
(MM) (“) (MM) (“)
A02790306-2 6 3/16” J02790306-2 6 3/16”
A02790308-2 8 3/16” J02790308-2 8 3/16”
A02790406-2 6 1/4” J02790406-2 6 1/4”
A02790408-2 8 1/4” J02790510-2 10 5/16”
A02790410-2 10 1/4” J02790512-2 12 5/16”
A02790412-2 12 1/4” J02791018-2 18 5/8”
A02790510-2 10 5/16” J02791020-2 20 5/8”
A02790512-2 12 5/16” J02792438-2 38 1.1/2”
A02790610-2 10 3/8”
A02790612-2 12 3/8”
A02790614-2 14 3/8”
A02790615-2 15 3/8”
A02790814-2 14 1/2”
A02790815-2 15 1/2”
A02790816-2 16 1/2”
A02790818-2 18 1/2” METRIC STAND PIPE X 90 SWEPT TAIL
A02791018-2 18 5/8” A
A02791020-2 20 5/8”
A02791220-2 20 3/4”
A02791222-2 22 3/4”
A02791225-2 25 3/4”
B
A02791625-2 25 1”
A02791628-2 28 1” Part No CONNECTION A HOSE TAIL B
A02791630-2 30 1” (MM) (“)
A02792035-2 35 1.1/4” G02790306-2 6 3/16”
A02792038-2 38 1.1/4” G02790308-2 8 3/16”
A02792438-2 38 1.1/2” G02790406-2 6 1/4”
A02792442-2 42 1.1/2” G02790510-2 10 5/16”
G02790512-2 12 5/16”
G02791018-2 18 5/8”
G02791020-2 20 5/8”
G02792438-2 38 1.1/2”

D10
