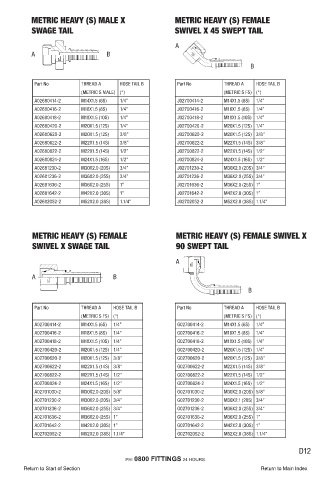

Page 124 - Fluid Fitting 2018_extended

METRIC HEAVY (S) MALE X METRIC HEAVY (S) FEMALE
SWAGE TAIL SWIVEL X 45 SWEPT TAIL

A
A B
B

Part No THREAD A HOSE TAIL B Part No THREAD A HOSE TAIL B
(METRIC S MALE) (“) (METRIC S FS) (“)
A02680414-2 M14X1.5 (6S) 1/4” J02700414-2 M14X1.5 (6S) 1/4”
A02680416-2 M16X1.5 (8S) 1/4” J02700416-2 M16X1.5 (8S) 1/4”
A02680418-2 M18X1.5 (10S) 1/4” J02700418-2 M18X1.5 (10S) 1/4”
A02680420-2 M20X1.5 (12S) 1/4” J02700420-2 M20X1.5 (12S) 1/4”
A02680620-2 M20X1.5 (12S) 3/8” J02700620-2 M20X1.5 (12S) 3/8”
A02680622-2 M22X1.5 (14S) 3/8” J02700622-2 M22X1.5 (14S) 3/8”
A02680822-2 M22X1.5 (14S) 1/2” J02700822-2 M22X1.5 (14S) 1/2”
A02680824-2 M24X1.5 (16S) 1/2” J02700824-2 M24X1.5 (16S) 1/2”
A02681230-2 M30X2.0 (20S) 3/4” J02701230-2 M30X2.0 (20S) 3/4”
A02681236-2 M36X2.0 (25S) 3/4” J02701236-2 M36X2.0 (25S) 3/4”
A02681636-2 M36X2.0 (25S) 1” J02701636-2 M36X2.0 (25S) 1”
A02681642-2 M42X2.0 (30S) 1” J02701642-2 M42X2.0 (30S) 1”
A02682052-2 M52X2.0 (38S) 1.1/4” J02702052-2 M52X2.0 (38S) 1.1/4”

METRIC HEAVY (S) FEMALE METRIC HEAVY (S) FEMALE SWIVEL X
SWIVEL X SWAGE TAIL 90 SWEPT TAIL

A

A B

B

Part No THREAD A HOSE TAIL B Part No THREAD A HOSE TAIL B
(METRIC S FS) (“) (METRIC S FS) (“)
A02700414-2 M14X1.5 (6S) 1/4” G02700414-2 M14X1.5 (6S) 1/4”
A02700416-2 M16X1.5 (8S) 1/4” G02700416-2 M16X1.5 (8S) 1/4”
A02700418-2 M18X1.5 (10S) 1/4” G02700418-2 M18X1.5 (10S) 1/4”
A02700420-2 M20X1.5 (12S) 1/4” G02700420-2 M20X1.5 (12S) 1/4”
A02700620-2 M20X1.5 (12S) 3/8” G02700620-2 M20X1.5 (12S) 3/8”
A02700622-2 M22X1.5 (14S) 3/8” G02700622-2 M22X1.5 (14S) 3/8”
A02700822-2 M22X1.5 (14S) 1/2” G02700822-2 M22X1.5 (14S) 1/2”
A02700824-2 M24X1.5 (16S) 1/2” G02700824-2 M24X1.5 (16S) 1/2”
A02701030-2 M30X2.0 (20S) 5/8” G02701030-2 M30X2.0 (20S) 5/8”
A02701230-2 M30X2.0 (20S) 3/4” G02701230-2 M30X2.1 (20S) 3/4”
A02701236-2 M36X2.0 (25S) 3/4” G02701236-2 M36X2.0 (25S) 3/4”
A02701636-2 M36X2.0 (25S) 1” G02701636-2 M36X2.0 (25S) 1”
A02701642-2 M42X2.0 (30S) 1” G02701642-2 M42X2.0 (30S) 1”
A02702052-2 M52X2.0 (38S) 1.1/4” G02702052-2 M52X2.0 (38S) 1.1/4”

D12
