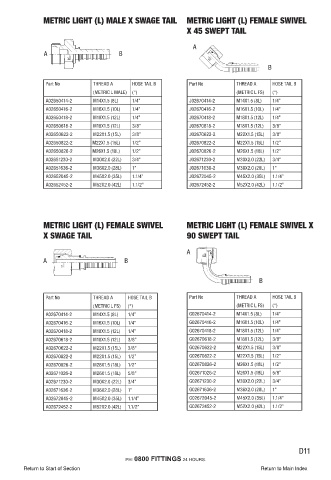

Page 123 - Fluid Fitting 2018_extended

METRIC LIGHT (L) MALE X SWAGE TAIL METRIC LIGHT (L) FEMALE SWIVEL
X 45 SWEPT TAIL

A
A B

B

Part No THREAD A HOSE TAIL B Part No THREAD A HOSE TAIL B
(METRIC L MALE) (“) (METRIC L FS) (“)
A02650414-2 M14X1.5 (8L) 1/4” J02670414-2 M14X1.5 (8L) 1/4”
A02650416-2 M16X1.5 (10L) 1/4” J02670416-2 M16X1.5 (10L) 1/4”
A02650418-2 M18X1.5 (12L) 1/4” J02670418-2 M18X1.5 (12L) 1/4”
A02650618-2 M18X1.5 (12L) 3/8” J02670618-2 M18X1.5 (12L) 3/8”
A02650622-2 M22X1.5 (15L) 3/8” J02670622-2 M22X1.5 (15L) 3/8”
A02650822-2 M22X1.5 (15L) 1/2” J02670822-2 M22X1.5 (15L) 1/2”
A02650826-2 M26X1.5 (18L) 1/2” J02670826-2 M26X1.5 (18L) 1/2”
A02651230-2 M30X2.0 (22L) 3/4” J02671230-2 M30X2.0 (22L) 3/4”
A02651636-2 M36X2.0 (28L) 1” J02671636-2 M36X2.0 (28L) 1”
A02652045-2 M45X2.0 (35L) 1.1/4” J02672045-2 M45X2.0 (35L) 1.1/4”
A02652452-2 M52X2.0 (42L) 1.1/2” J02672452-2 M52X2.0 (42L) 1.1/2”

METRIC LIGHT (L) FEMALE SWIVEL METRIC LIGHT (L) FEMALE SWIVEL X
X SWAGE TAIL 90 SWEPT TAIL

A
A B

B

Part No THREAD A HOSE TAIL B Part No THREAD A HOSE TAIL B
(METRIC L FS) (“) (METRIC L FS) (“)
A02670414-2 M14X1.5 (8L) 1/4” G02670414-2 M14X1.5 (8L) 1/4”
A02670416-2 M16X1.5 (10L) 1/4” G02670416-2 M16X1.5 (10L) 1/4”
A02670418-2 M18X1.5 (12L) 1/4” G02670418-2 M18X1.5 (12L) 1/4”
A02670618-2 M18X1.5 (12L) 3/8” G02670618-2 M18X1.5 (12L) 3/8”
A02670622-2 M22X1.5 (15L) 3/8” G02670622-2 M22X1.5 (15L) 3/8”
A02670822-2 M22X1.5 (15L) 1/2” G02670822-2 M22X1.5 (15L) 1/2”
A02670826-2 M26X1.5 (18L) 1/2” G02670826-2 M26X1.5 (18L) 1/2”
A02671026-2 M26X1.5 (18L) 5/8” G02671026-2 M26X1.5 (18L) 5/8”
A02671230-2 M30X2.0 (22L) 3/4” G02671230-2 M30X2.0 (22L) 3/4”
A02671636-2 M36X2.0 (28L) 1” G02671636-2 M36X2.0 (28L) 1”
A02672045-2 M45X2.0 (35L) 1.1/4” G02672045-2 M45X2.0 (35L) 1.1/4”
A02672452-2 M52X2.0 (42L) 1.1/2” G02672452-2 M52X2.0 (42L) 1.1/2”

D11
