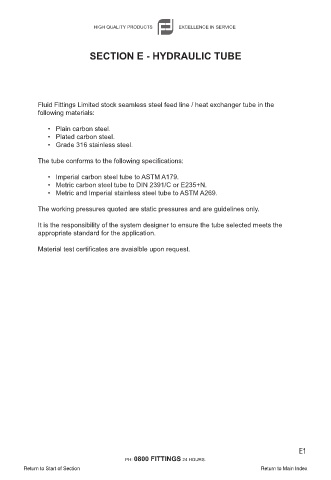

SECTION E - HYDRAULIC TUBE
Black - Pantone Black
Grey - Cool Grey 10
CMYK:
Grey Black RGB:
C: 0 C: 0 Red Black
M: 0 M: 0 R: 75 R: 0
Y: 0 Y: 0 G: 75 G: 0
K: 70 K: 100 B: 75 B: 0
Fluid Fittings Limited stock seamless steel feed line / heat exchanger tube in the
following materials:
• Plain carbon steel.
• Plated carbon steel.
• Grade 316 stainless steel.
The tube conforms to the following specifications:
• Imperial carbon steel tube to ASTM A179.
• Metric carbon steel tube to DIN 2391/C or E235+N.
• Metric and Imperial stainless steel tube to ASTM A269.
The working pressures quoted are static pressures and are guidelines only.
It is the responsibility of the system designer to ensure the tube selected meets the
appropriate standard for the application.
Material test certificates are avaialble upon request.

E1
