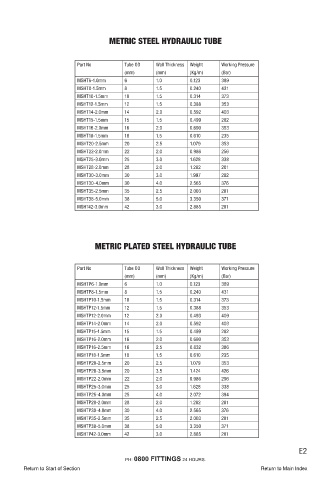

METRIC STEEL HYDRAULIC TUBE

Part No Tube OD Wall Thickness Weight Working Pressure
(mm) (mm) (Kg/m) (Bar)
MSHT6-1.0mm 6 1.0 0.123 389
MSHT8-1.5mm 8 1.5 0.240 431
MSHT10-1.5mm 10 1.5 0.314 373
MSHT12-1.5mm 12 1.5 0.388 353
MSHT14-2.0mm 14 2.0 0.592 403
MSHT15-1.5mm 15 1.5 0.499 282
MSHT16-2.0mm 16 2.0 0.690 353
MSHT18-1.5mm 18 1.5 0.610 235
MSHT20-2.5mm 20 2.5 1.079 353
MSHT22-2.0mm 22 2.0 0.986 256
MSHT25-3.0mm 25 3.0 1.628 338
MSHT28-2.0mm 28 2.0 1.282 201
MSHT30-3.0mm 30 3.0 1.997 282
MSHT30-4.0mm 30 4.0 2.565 376
MSHT35-2.5mm 35 2.5 2.003 201
MSHT38-5.0mm 38 5.0 3.350 371
MSHT42-3.0mm 42 3.0 2.885 201

METRIC PLATED STEEL HYDRAULIC TUBE

Part No Tube OD Wall Thickness Weight Working Pressure
(mm) (mm) (Kg/m) (Bar)
MSHTP6-1.0mm 6 1.0 0.123 389
MSHTP8-1.5mm 8 1.5 0.240 431
MSHTP10-1.5mm 10 1.5 0.314 373
MSHTP12-1.5mm 12 1.5 0.388 353
MSHTP12-2.0mm 12 2.0 0.493 409
MSHTP14-2.0mm 14 2.0 0.592 403
MSHTP15-1.5mm 15 1.5 0.499 282
MSHTP16-2.0mm 16 2.0 0.690 353
MSHTP16-2.5mm 16 2.5 0.832 386
MSHTP18-1.5mm 18 1.5 0.610 235
MSHTP20-2.5mm 20 2.5 1.079 353
MSHTP20-3.5mm 20 3.5 1.424 426
MSHTP22-2.0mm 22 2.0 0.986 256
MSHTP25-3.0mm 25 3.0 1.628 338
MSHTP25-4.0mm 25 4.0 2.072 394
MSHTP28-2.0mm 28 2.0 1.282 201
MSHTP30-4.0mm 30 4.0 2.565 376
MSHTP35-2.5mm 35 2.5 2.003 201
MSHTP38-5.0mm 38 5.0 3.350 371
MSHTP42-3.0mm 42 3.0 2.885 201

E2

PH: 0800 FITTINGS 24 HOURS.
