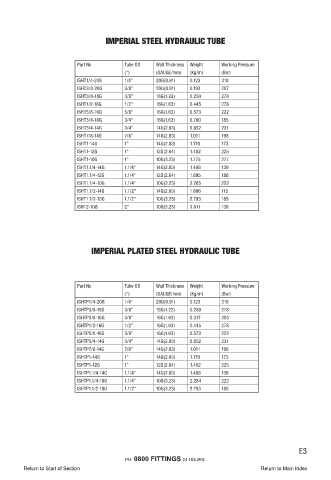

IMPERIAL STEEL HYDRAULIC TUBE

Part No Tube OD Wall Thickness Weight Working Pressure
(”) (GAUGE/mm) (Kg/m) (Bar)
ISHT1/4-20G 1/4” 20G(0.91) 0.123 310
ISHT3/8-20G 3/8” 20G(0.91) 0.193 207
ISHT3/8-18G 3/8” 18G(1.22) 0.250 278
ISHT1/2-16G 1/2” 16G(1.63) 0.445 278
ISHT5/8-16G 5/8” 16G(1.63) 0.573 222
ISHT3/4-16G 3/4” 16G(1.63) 0.700 185
ISHT3/4-14G 3/4” 14G(2.03) 0.852 231
ISHT7/8-14G 7/8” 14G(2.03) 1.011 198
ISHT1-14G 1” 14G(2.03) 1.170 173
ISHT1-12G 1” 12G(2.64) 1.482 225
ISHT1-10G 1” 10G(3.25) 1.775 277
ISHT1.1/4-14G 1.1/4” 14G(2.03) 1.488 139
ISHT1.1/4-12G 1.1/4” 12G(2.64) 1.895 180
ISHT1.1/4-10G 1.1/4” 10G(3.25) 2.285 222
ISHT1.1/2-14G 1.1/2” 14G(2.03) 1.806 115
ISHT1.1/2-10G 1.1/2” 10G(3.25) 2.793 185
ISHT2-10G 2” 10G(3.25) 3.811 139

IMPERIAL PLATED STEEL HYDRAULIC TUBE

Part No Tube OD Wall Thickness Weight Working Pressure
(”) (GAUGE/mm) (Kg/m) (Bar)
ISHTP1/4-20G 1/4” 20G(0.91) 0.123 310
ISHTP3/8-18G 3/8” 18G(1.22) 0.250 278
ISHTP3/8-16G 3/8” 16G(1.63) 0.317 385
ISHTP1/2-16G 1/2” 16G(1.63) 0.445 278
ISHTP5/8-16G 5/8” 16G(1.63) 0.573 222
ISHTP3/4-14G 3/4” 14G(2.03) 0.852 231
ISHTP7/8-14G 7/8” 14G(2.03) 1.011 198
ISHTP1-14G 1” 14G(2.03) 1.170 173
ISHTP1-12G 1” 12G(2.64) 1.482 225
ISHTP1.1/4-14G 1.1/4” 14G(2.03) 1.488 139
ISHTP1.1/4-10G 1.1/4” 10G(3.25) 2.284 222
ISHTP1.1/2-10G 1.1/2” 10G(3.25) 2.793 185
