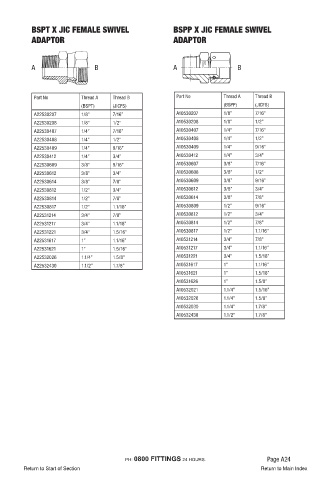

Page 28 - Fluid Fitting 2018_extended

BSPT X JIC FEMALE SWIVEL BSPP X JIC FEMALE SWIVEL
ADAPTOR ADAPTOR

A B A B

Part No Thread A Thread B Part No Thread A Thread B
(BSPT) (JICFS) (BSPP) (JICFS)
A22530207 1/8” 7/16” A10530207 1/8” 7/16”
A22530208 1/8” 1/2” A10530208 1/8” 1/2”
A22530407 1/4” 7/16” A10530407 1/4” 7/16”
A22530408 1/4” 1/2” A10530408 1/4” 1/2”
A22530409 1/4” 9/16” A10530409 1/4” 9/16”
A22530412 1/4” 3/4” A10530412 1/4” 3/4”
A22530609 3/8” 9/16” A10530607 3/8” 7/16”
A22530612 3/8” 3/4” A10530608 3/8” 1/2”
A22530614 3/8” 7/8” A10530609 3/8” 9/16”
A22530812 1/2” 3/4” A10530612 3/8” 3/4”
A22530814 1/2” 7/8” A10530614 3/8” 7/8”
A22530817 1/2” 1.1/16” A10530809 1/2” 9/16”
A22531214 3/4” 7/8” A10530812 1/2” 3/4”
A22531217 3/4” 1.1/16” A10530814 1/2” 7/8”
A22531221 3/4” 1.5/16” A10530817 1/2” 1.1/16”
A22531617 1” 1.1/16” A10531214 3/4” 7/8”
A22531621 1” 1.5/16” A10531217 3/4” 1.1/16”
A22532026 1.1/4” 1.5/8” A10531221 3/4” 1.5/16”
A22532430 1.1/2” 1.7/8” A10531617 1” 1.1/16”
A10531621 1” 1.5/16”
A10531626 1” 1.5/8”
A10532021 1.1/4” 1.5/16”
A10532026 1.1/4” 1.5/8”
A10532030 1.1/4” 1.7/8”
A10532430 1.1/2” 1.7/8”
