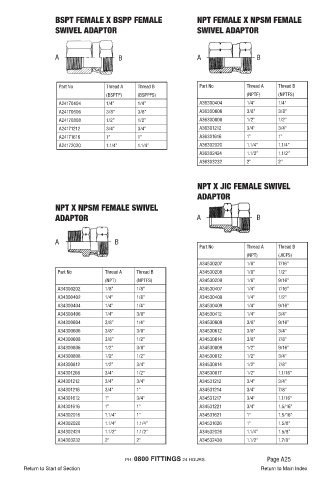

Page 29 - Fluid Fitting 2018_extended

BSPT FEMALE X BSPP FEMALE NPT FEMALE X NPSM FEMALE
SWIVEL ADAPTOR SWIVEL ADAPTOR

A B A B

Part No Thread A Thread B Part No Thread A Thread B
(BSPTF) (BSPPFS) (NPTF) (NPTFS)
A24170404 1/4” 1/4” A36300404 1/4” 1/4”
A24170606 3/8” 3/8” A36300606 3/8” 3/8”
A24170808 1/2” 1/2” A36300808 1/2” 1/2”
A24171212 3/4” 3/4” A36301212 3/4” 3/4”
A24171616 1” 1” A36301616 1” 1”
A24172020 1.1/4” 1.1/4” A36302020 1.1/4” 1.1/4”
A36302424 1.1/2” 1.1/2”
A36303232 2” 2”

NPT X JIC FEMALE SWIVEL
ADAPTOR

NPT X NPSM FEMALE SWIVEL
ADAPTOR A B

A B
Part No Thread A Thread B
(NPT) (JICFS)
A34530207 1/8” 7/16”
Part No Thread A Thread B A34530208 1/8” 1/2”
(NPT) (NPTFS) A34530209 1/8” 9/16”
A34300202 1/8” 1/8” A34530407 1/4” 7/16”
A34300402 1/4” 1/8” A34530408 1/4” 1/2”
A34300404 1/4” 1/4” A34530409 1/4” 9/16”
A34300406 1/4” 3/8” A34530412 1/4” 3/4”
A34300604 3/8” 1/4” A34530609 3/8” 9/16”
A34300606 3/8” 3/8” A34530612 3/8” 3/4”
A34300608 3/8” 1/2” A34530614 3/8” 7/8”
A34300806 1/2” 3/8” A34530809 1/2” 9/16”
A34300808 1/2” 1/2” A34530812 1/2” 3/4”
A34300812 1/2” 3/4” A34530814 1/2” 7/8”
A34301208 3/4” 1/2” A34530817 1/2” 1.1/16”
A34301212 3/4” 3/4” A34531212 3/4” 3/4”
A34301216 3/4” 1” A34531214 3/4” 7/8”
A34301612 1” 3/4” A34531217 3/4” 1.1/16”
A34301616 1” 1” A34531221 3/4” 1.5/16”
A34302016 1.1/4” 1” A34531621 1” 1.5/16”
A34302020 1.1/4” 1.1/4” A34531626 1” 1.5/8”
A34302424 1.1/2” 1.1/2” A34532026 1.1/4” 1.5/8”
A34303232 2” 2” A34532430 1.1/2” 1.7/8”

PH: 0800 FITTINGS 24 HOURS. Page A25
